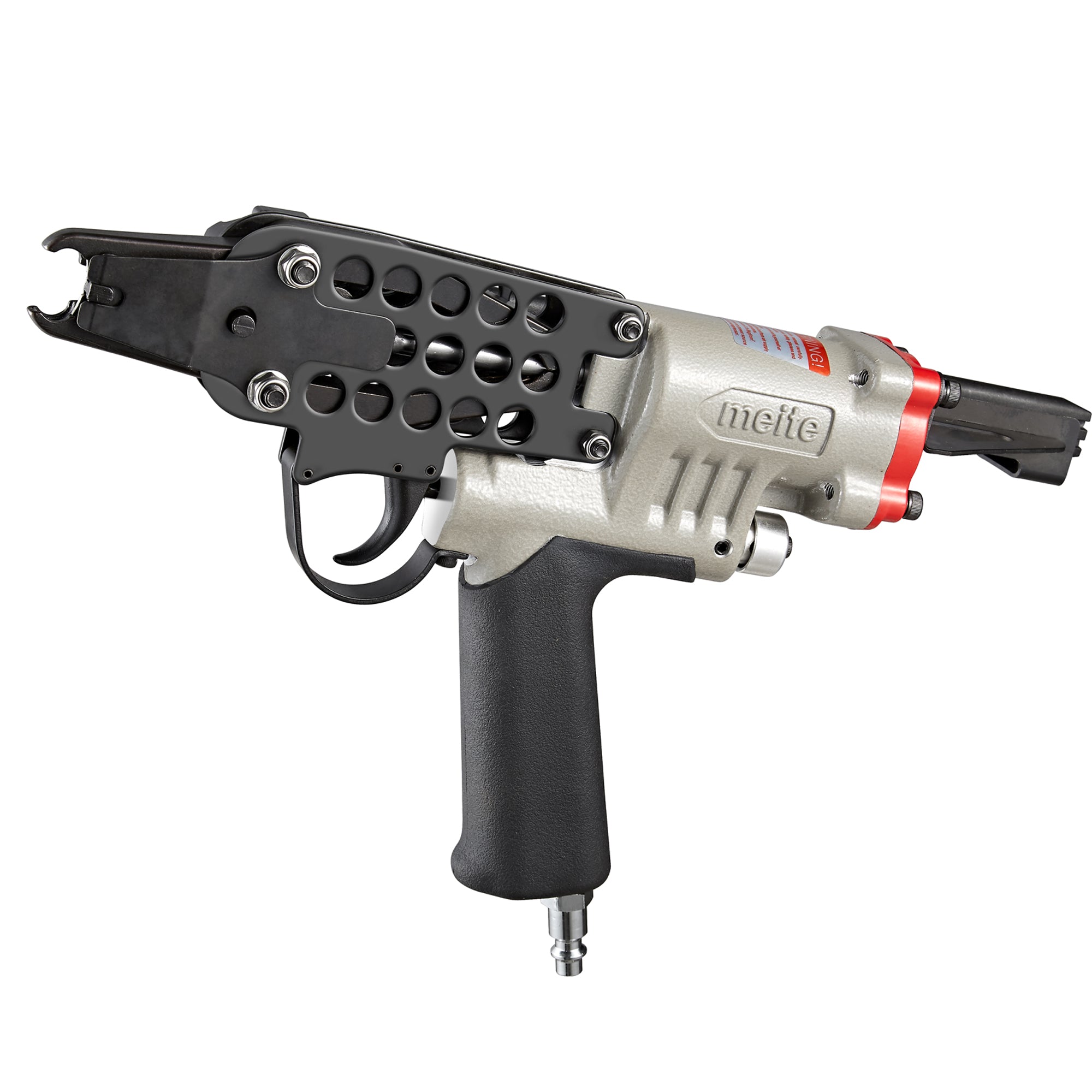

15 Gauge 3/4" Extended Nose Hog Ring Tool - Upgraded Trigger Set - New Model SC7E-I2

$209.00
$209.00
$259.00
Sold Out

- +

Extended nose length for hard-to-reach areas

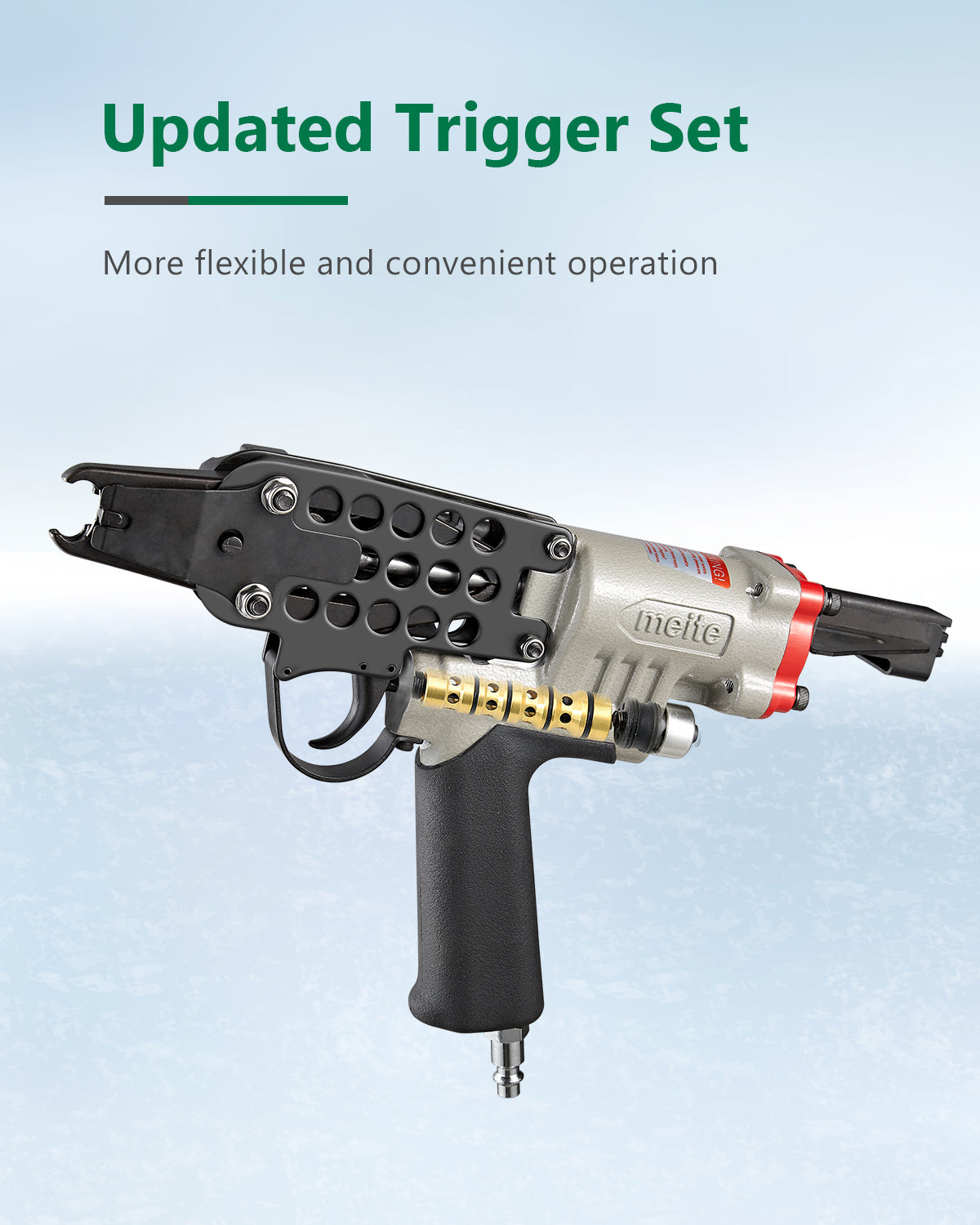

Features: upgraded trigger consistent with human mechanics

The magazine is made of a steel plate with strong wear resistance and high stability. Capacity: 100 PCS

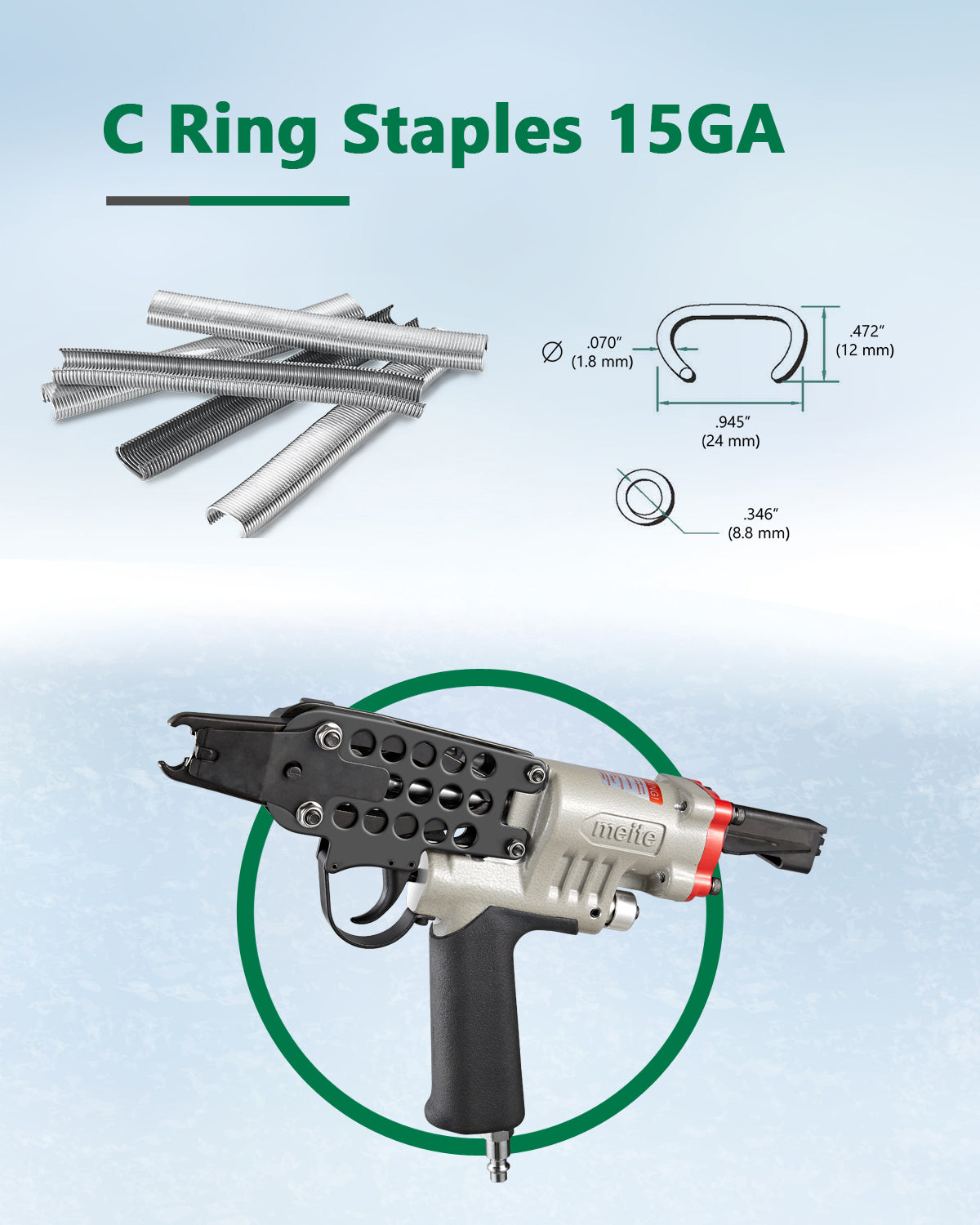

Fastener: Meite 15 Gauge 15/16" Crown Hog Ring Staples

Applications: wire cage, car seat, spring mattress, fence, etc.

Compatible with Fasteners of the following specifications:

Outer Crown: 15/16" (24 mm)

Gauge Size: 15 Gauge

Closure Diameter: 0.346" (8.8 mm)

In Depth

SC760C SC7C SC7C-P SC7E SC7E-P SC77XE MTC560 MTC600
Weight (lbs) 3.59 3.83 3.24 3.84 3.37 4.0 6.21 7.70
Length (in.) 13
 13.31 13 13.74
 13.74 14.76
 16.61
 17.13
Width (in.) 3.30 3.30 3.30 3.30 3.30 3.46 5.16
 5.98
Height (in.) 7.91 7.91 7.91 7.91 7.91 8.50 9.57 10.75
Capacity (PCS) 100 100 100 100 100 100 125 100
Magazine Material Steel Steel Plastic Steel Plastic Steel Steel Steel
Fastener Specifications
Nail Gauge 16 15 15 15
 15 15
 14 14
Crown Height 8.7 mm 12 mm 12 mm 12 mm 12 mm 12 mm 20.5 mm 27.5 mm
Outer Crown Width 1/2" (12.5 mm) 15/16" (24 mm) 15/16" (24 mm) 15/16" (24 mm) 15/16" (24 mm) 15/16" (24 mm) 1.69" (43 mm) 2.46" (62.5 mm)
Inner Crown Width .665" (16.9 mm) 3/4" (19 mm) 3/4" (19 mm) 3/4" (19 mm) 3/4" (19 mm) 3/4" (19 mm) 1-1/2" (39 mm) 2-1/4" (56 mm)
Nail Diameter .063" (1.6 mm) .070" (1.8 mm) .070" (1.8 mm) .070" (1.8 mm)c .070" (1.8 mm) .070" (1.8 mm) .079" (2 mm) .079" (2 mm)
Closure Diameter

.102"-.141"

(2.6-3.6 mm)

.217"-.236"

(5.5-6.0 mm)

.217"-.236"

(5.5-6.0 mm)

.346"

(8.8 mm)

.217"-.236"

(5.5-6.0 mm)

.346"

(8.8 mm)

.590"-.709"

(15-18 mm)

.71"-.79"

(18-20 mm)
