15 Gauge 3/4'' Standard Nose Hog Ring Tool - Steel Magazine - Model SC7C
-
Regular Price
-
$220.50
-
Sale Price
-
$220.50
-
Regular Price
-
$245.00
Sold Out
-
Unit Price
- per
- Regular Price
- $220.50
- Sale Price
- $220.50
- Regular Price
- $245.00
- Unit Price
- per
[Lightweight and Maneuverable] At 3.7 pounds, SC7C is easy to maneuver, and light enough for all-day work.
Standard nose length hog ring/c ring tool nail gun
[Large Capacity] With a large capacity and long magazine
[Comfortable Grip] Rubber grip can reduce vibration and fatigue and increase productivity.
- Fastener:
[Applications] Cages, car seats, spring mattress, bedding, etc.

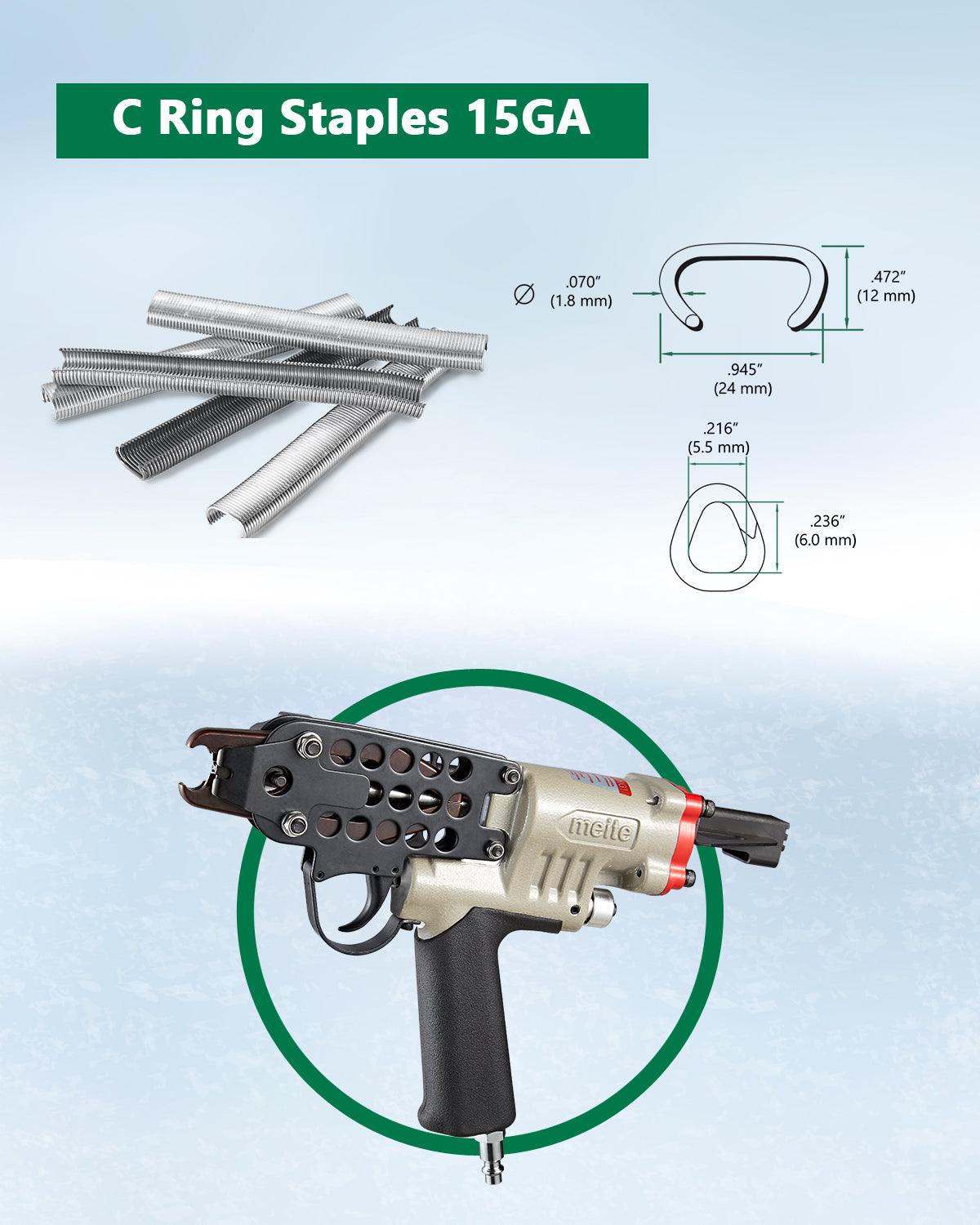

Fit Fasteners of the following specifications:
Shank Diameter: 1.8mm (0.071")
Outside Crown: 24mm (15/16")
Gauge Size: 15 Gauge
Closure Diameter: 5.5mm -6.0mm (0.217" - 0.236")
Nail Height: 0.472"/ 12mm
- SKU: SC7C
- In Stock: 44
- Weight: 3.8 lb
- Product Type: Hog Ring Tool
- Brand: Meite USA
In Depth
| SC760C | SC760C-I2 | SC7C | SC7C-I2 | SC7E | SC7E-I2 | SC77XE | MTC560 | MTC600 | |
| Fastener Specifications | |||||||||
| Nail Gauge | 16 | 16 | 15 | 15 | 15 |
15 | 15 |
14 | 14 |
| Crown Height | 8.7 mm | 8.7 mm | 12 mm | 12 mm | 12 mm | 12 mm | 12 mm | 20.5 mm | 27.5 mm |
| Outer Crown Width | 1/2" (12.5 mm) | 1/2" (12.5 mm) | 15/16" (24 mm) | 15/16" (24 mm) | 15/16" (24 mm) | 15/16" (24 mm) | 15/16" (24 mm) | 1.69" (43 mm) | 2.46" (62.5 mm) |
| Inner Crown Width | .665" (16.9 mm) | .665" (16.9 mm) | 3/4" (19 mm) | 3/4" (19 mm) | 3/4" (19 mm) | 3/4" (19 mm) | 3/4" (19 mm) | 1-1/2" (39 mm) | 2-1/4" (56 mm) |
| Nail Diameter | .063" (1.6 mm) | .063" (1.6 mm) | .070" (1.8 mm) | .070" (1.8 mm) | .070" (1.8 mm)c | .070" (1.8 mm) | .070" (1.8 mm) | .079" (2 mm) | .079" (2 mm) |
| Closure Diameter |
.102"-.141" (2.6-3.6 mm) |
.102"-.141" (2.6-3.6 mm) |
.217"-.236" (5.5-6.0 mm) |
.217"-.236" (5.5-6.0 mm) |
.346" (8.8 mm) |
.346" (8.8 mm) |
.346" (8.8 mm) |
.590"-.709" (15-18 mm) |
.71"-.79" (18-20 mm) |
