14 Gauge 2-1/4" Crown Hog Ring Tool
-
Regular Price
-
$432.00
-
Sale Price
-
$432.00
-
Regular Price
-
$475.00
Sold Out
-
Unit Price
- per
- Regular Price
- $432.00
- Sale Price
- $432.00
- Regular Price
- $475.00
Sold Out
- Unit Price
- per

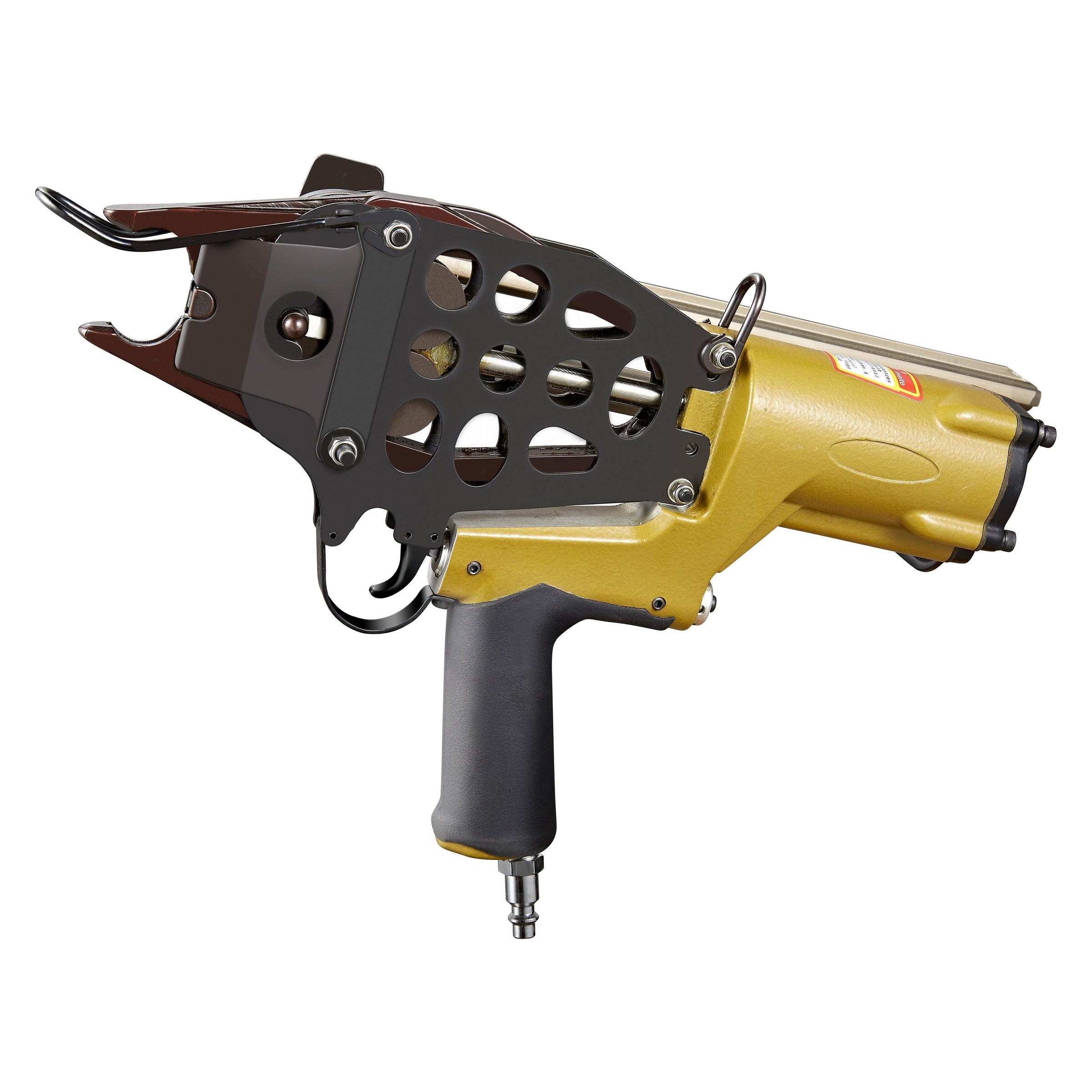

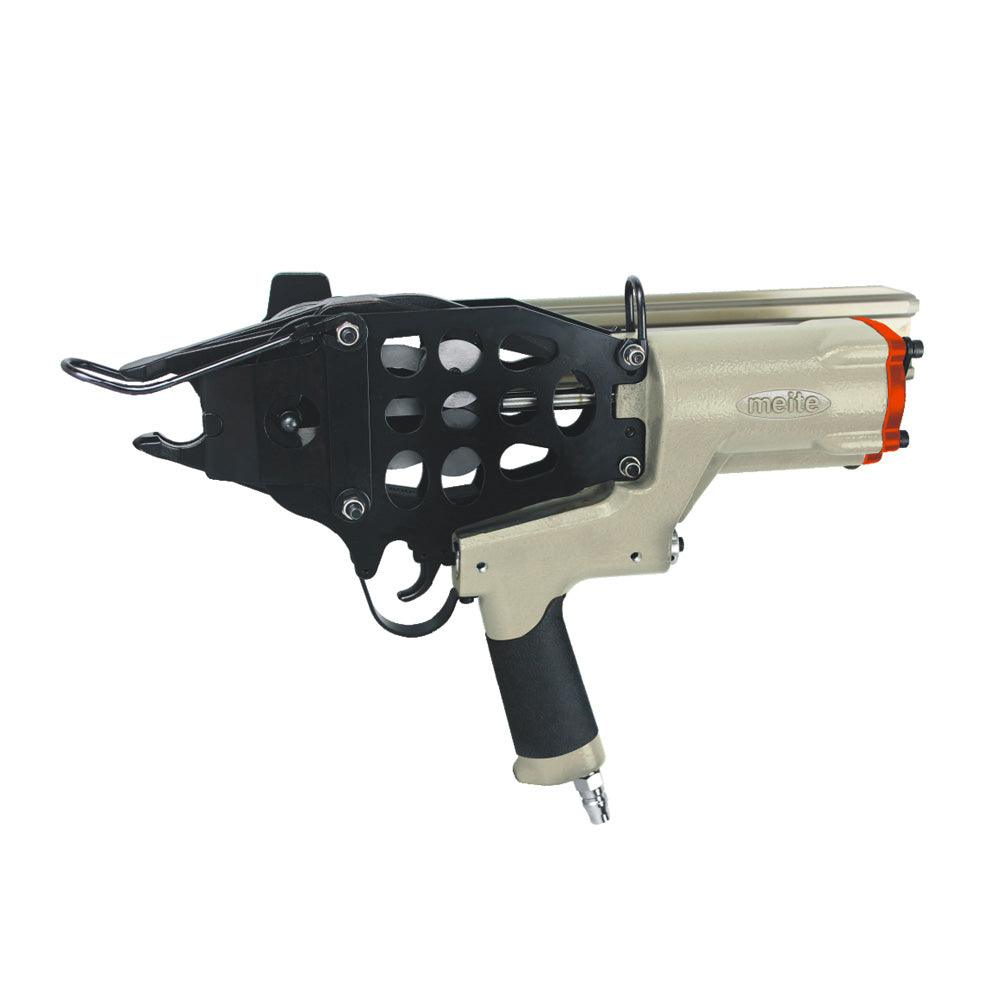

Air hog ring /c ring tool with an extended nose for hard-to-reach areas
Professional hog ring tool to provide powerful performance
Nose guide with rubber comfort grip
Applications: wire cage, car seat, spring mattress, etc.
Fit Fasteners of the following specifications:
Shank Diameter: .079" (2mm)
Inner Crown: 2-1/4"
Outside Crown: 2-3/8" (62.5 mm)
Gauge Size: 14 Gauge
Closure Diameter: .787" - .984" (20mm - 25mm)
- SKU: MTC600
- In Stock: 15
- Weight: 7.7 lb
- Product Type: Hog Ring Tool
- Brand: Meite USA
In Depth
SC760C | SC7C | SC7C-P | SC7E | SC7E-P | SC77XE | MTC560 | MTC600 | |
Weight (lbs) | 3.59 | 3.83 | 3.24 | 3.84 | 3.37 | 4.0 | 6.21 | 7.70 |
Length (in.) | 13 |
13.31 | 13 | 13.74 |
13.74 | 14.76 |
16.61 |
17.13 |
Width (in.) | 3.30 | 3.30 | 3.30 | 3.30 | 3.30 | 3.46 | 5.16 |
5.98 |
Height (in.) | 7.91 | 7.91 | 7.91 | 7.91 | 7.91 | 8.50 | 9.57 | 10.75 |
Capacity (PCS) | 100 | 100 | 100 | 100 | 100 | 100 | 125 | 100 |
Magazine Material | Steel | Steel | Plastic | Steel | Plastic | Steel | Steel | Steel |
Fastener Specifications | ||||||||
Nail Gauge | 16 | 15 | 15 | 15 |
15 | 15 |
14 | 14 |
Crown Height | 8.7 mm | 12 mm | 12 mm | 12 mm | 12 mm | 12 mm | 20.5 mm | 27.5 mm |
Outer Crown Width | 1/2" (12.5 mm) | 15/16" (24 mm) | 15/16" (24 mm) | 15/16" (24 mm) | 15/16" (24 mm) | 15/16" (24 mm) | 1.69" (43 mm) | 2.46" (62.5 mm) |
Inner Crown Width | .665" (16.9 mm) | 3/4" (19 mm) | 3/4" (19 mm) | 3/4" (19 mm) | 3/4" (19 mm) | 3/4" (19 mm) | 1-1/2" (39 mm) | 2-1/4" (56 mm) |
Nail Diameter | .063" (1.6 mm) | .070" (1.8 mm) | .070" (1.8 mm) | .070" (1.8 mm)c | .070" (1.8 mm) | .070" (1.8 mm) | .079" (2 mm) | .079" (2 mm) |
Closure Diameter |
.102"-.141" (2.6-3.6 mm) |
.217"-.236" (5.5-6.0 mm) |
.217"-.236" (5.5-6.0 mm) |
.346" (8.8 mm) |
.217"-.236" (5.5-6.0 mm) |
.346" (8.8 mm) |
.590"-.709" (15-18 mm) |
.71"-.79" (18-20 mm) |
