15 Gauge 3/4'' Extra Extended Nose Hog Ring Tool - Model SC77XE

Original price $359.00
Original price $359.00 - Original price $359.00
Original price $359.00
Current price $287.20
$287.20 - $287.20
Current price $287.20
SKU SC77XE

Ask questions

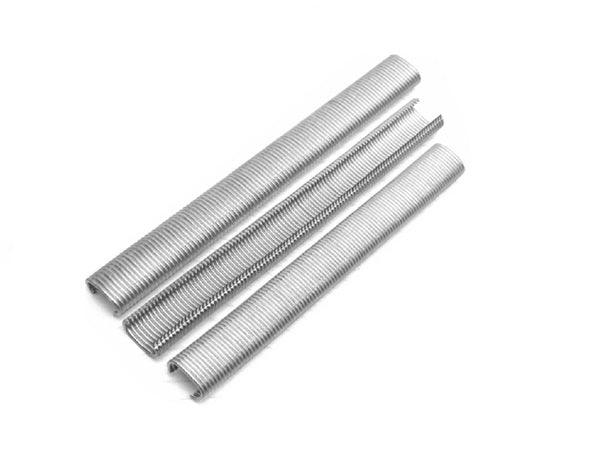

[Compatible Fasteners] Meite 15 Gauge Galvanized Hog Rings - 15/16" Crown

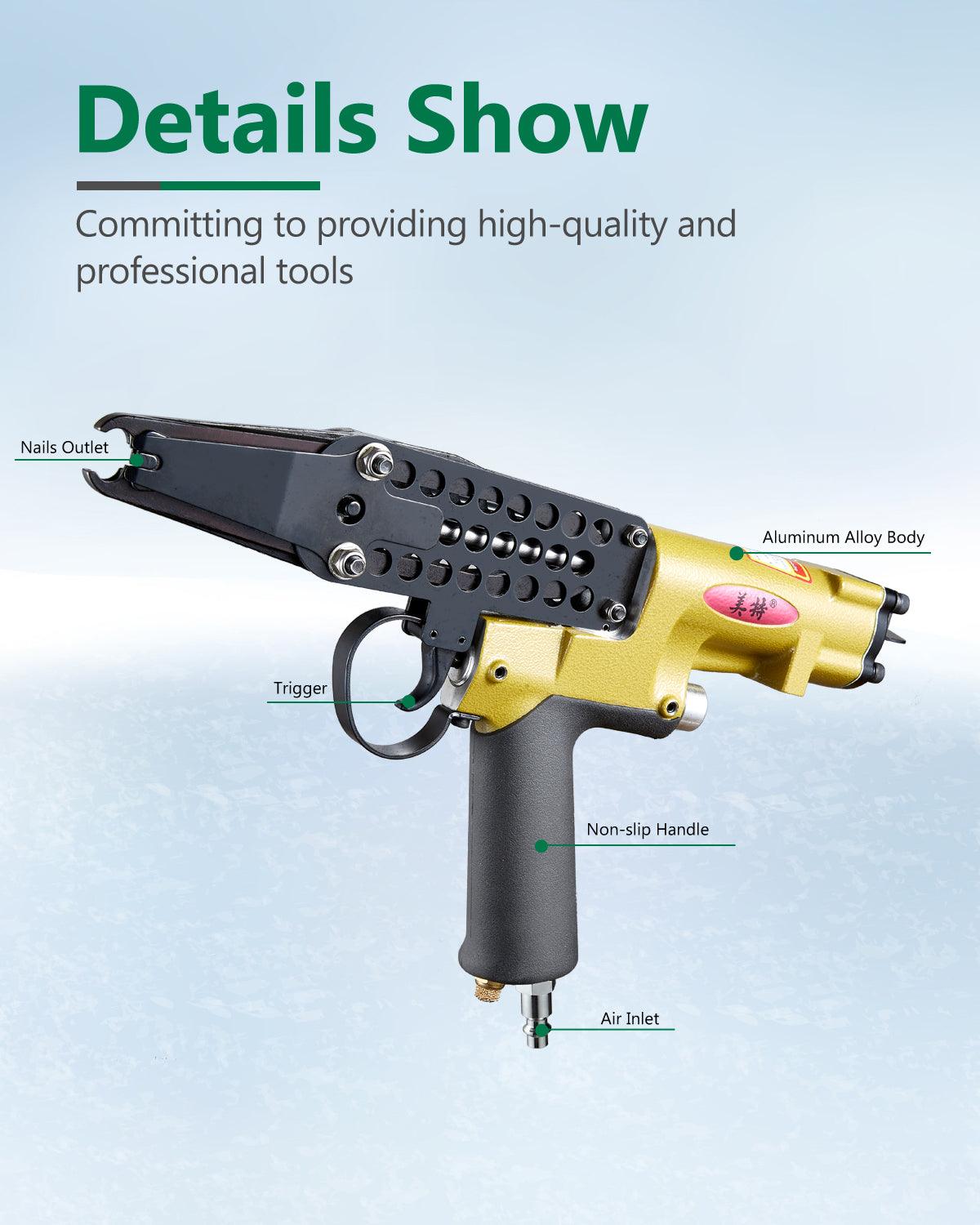

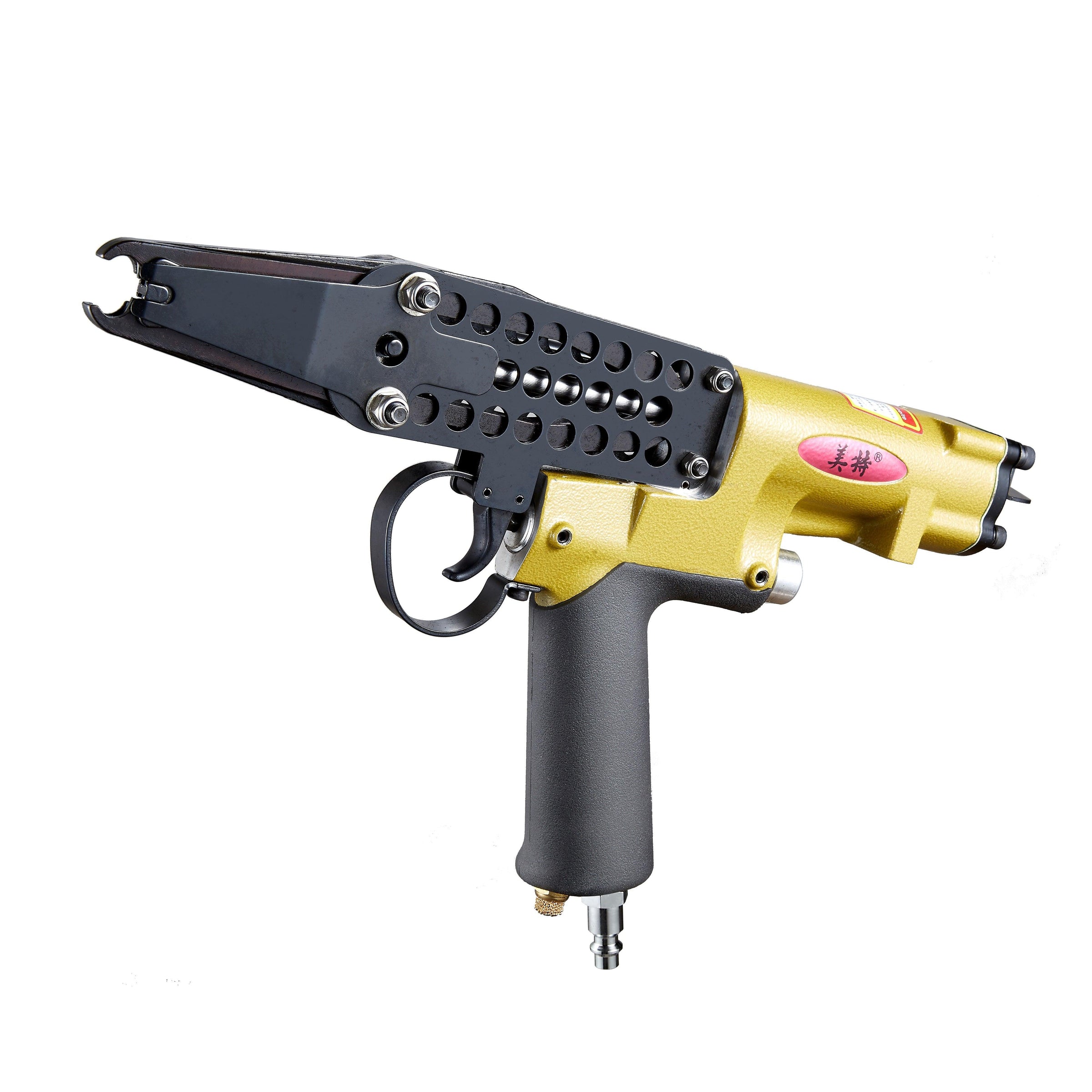

Meite 15 gauge 3/4'' extra extended nose professional hog ring/c ring tool nail gun to provide you powerful performance. An air-powered pneumatic tool, use with an air compressor.

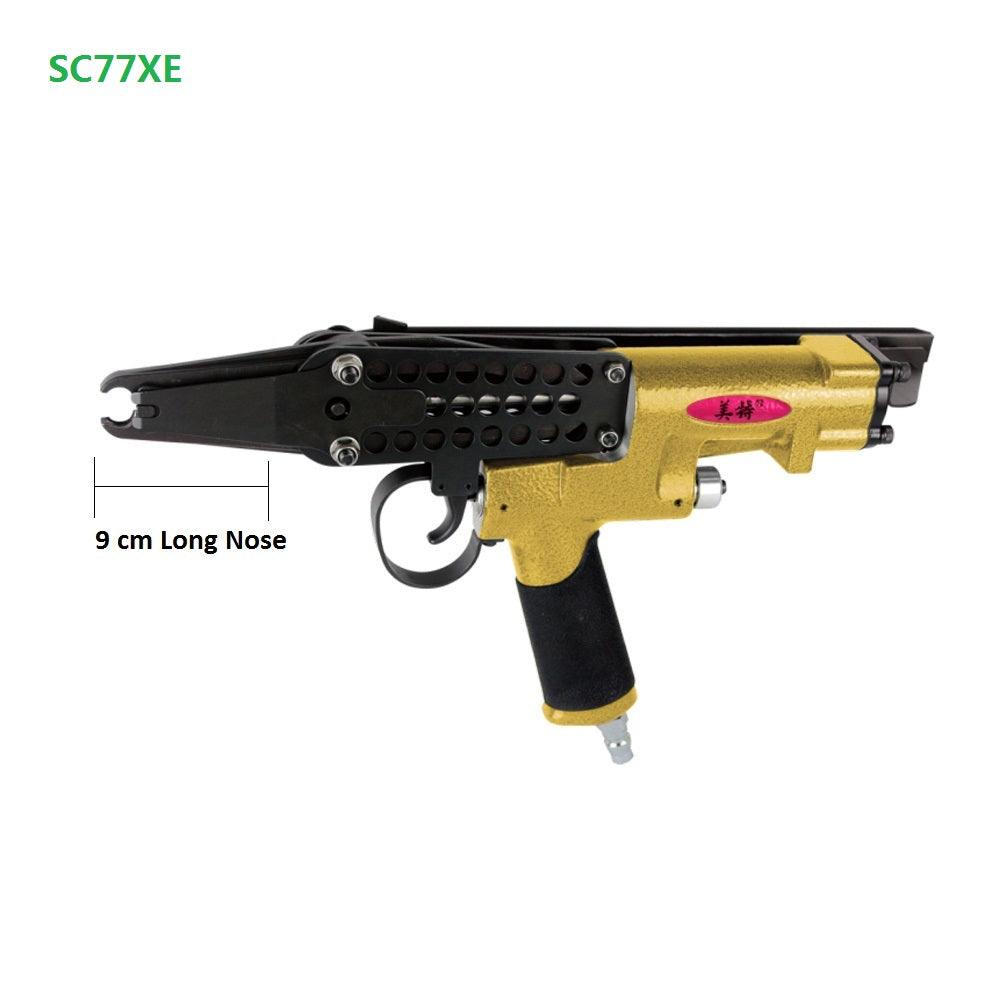

  • Extended Nose: With 9 cm longer extended nose for hard-to-reach areas
  • Efficient Trigger: Upgraded trigger consistent with human mechanics
  • Comfortable Grip: Rubber grip can reduce vibration and fatigue and increase productivity
  • Applications: wire cages, car seats, spring mattresses, bedding, etc.

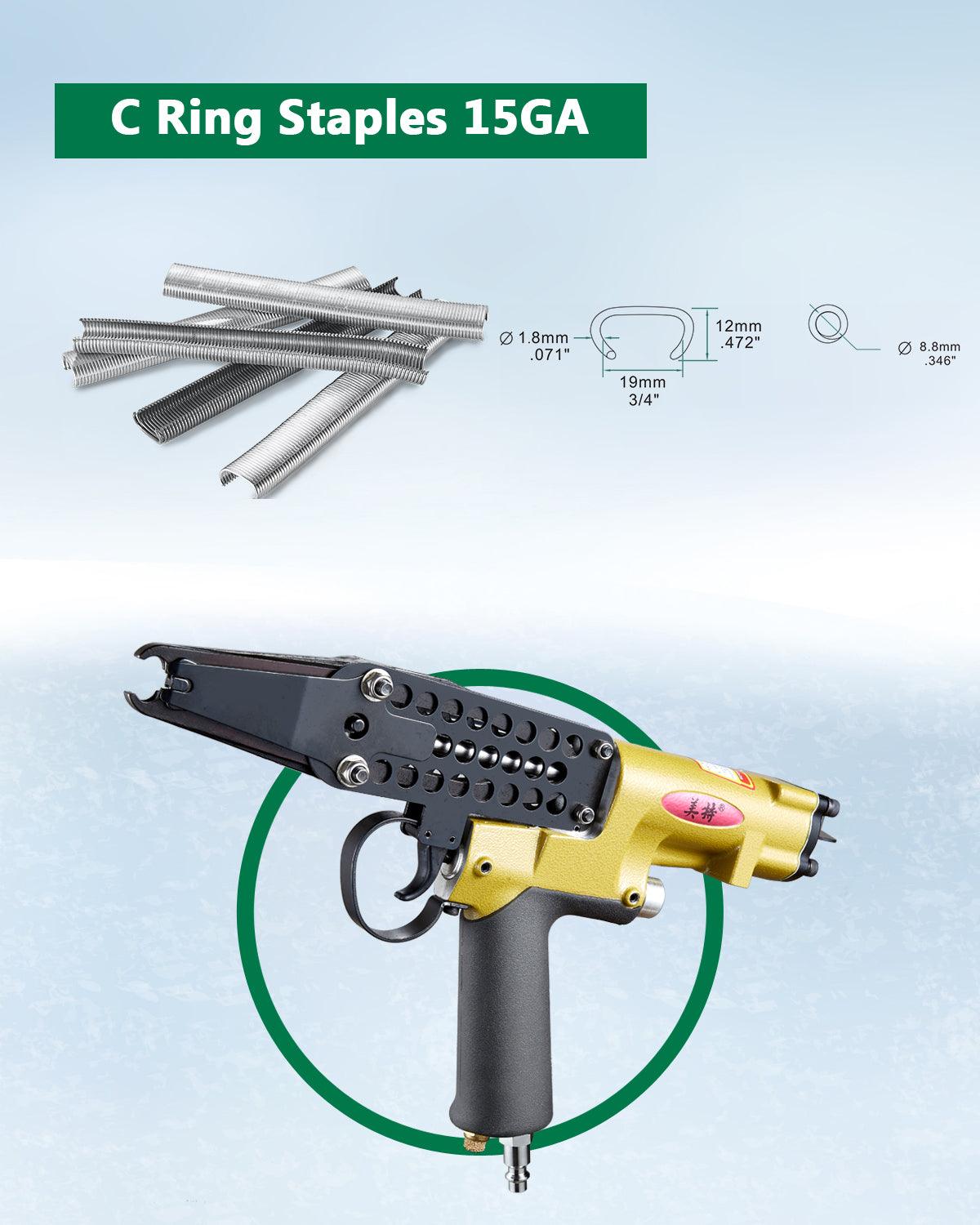

Fit Fasteners of the following specifications:

  • Shank Diameter: 1.8mm (.071")
  • Outside Crown: 24mm (15/16")
  • Gauge Size: 15 Gauge
  • Closure Diameter: 5.5mm -6.0mm (.217" - .236")
  • Nail Height: 0.472"/12mm

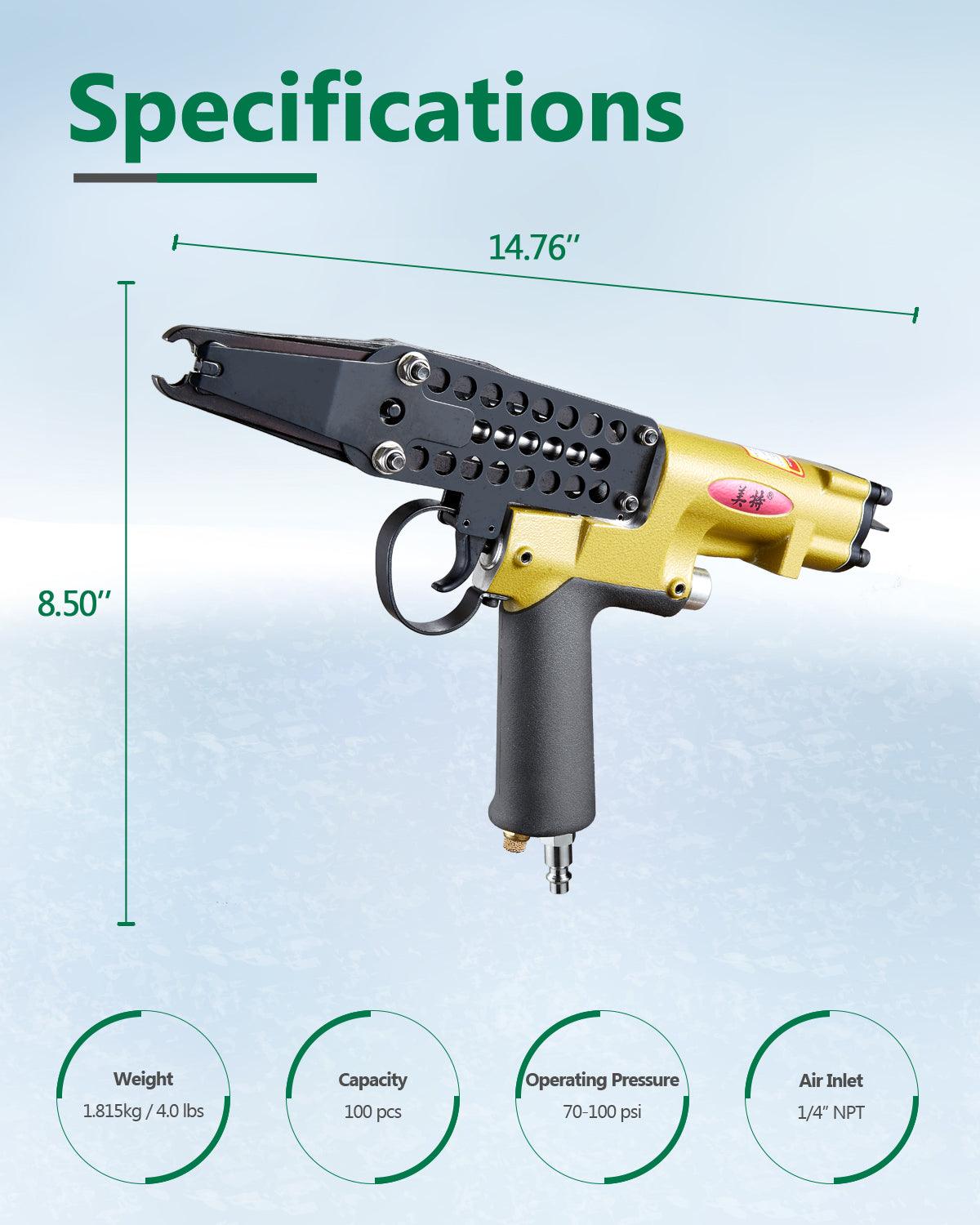

SC760C SC7C SC7E SC77XE MTC560 MTC600
Weight (lbs) 3.59 3.83 3.84 4.0 6.21 7.70
Length (in.) 13
13.31 13.74
14.76
16.61
17.13
Width (in.) 3.30 3.30 3.30 3.46 5.16
5.98
Height (in.) 7.91 7.91 7.91 8.50 9.57 10.75
Capacity (PCS) 100 100 100 100 125 100
Magazine Material Steel Steel Steel Steel Steel Steel

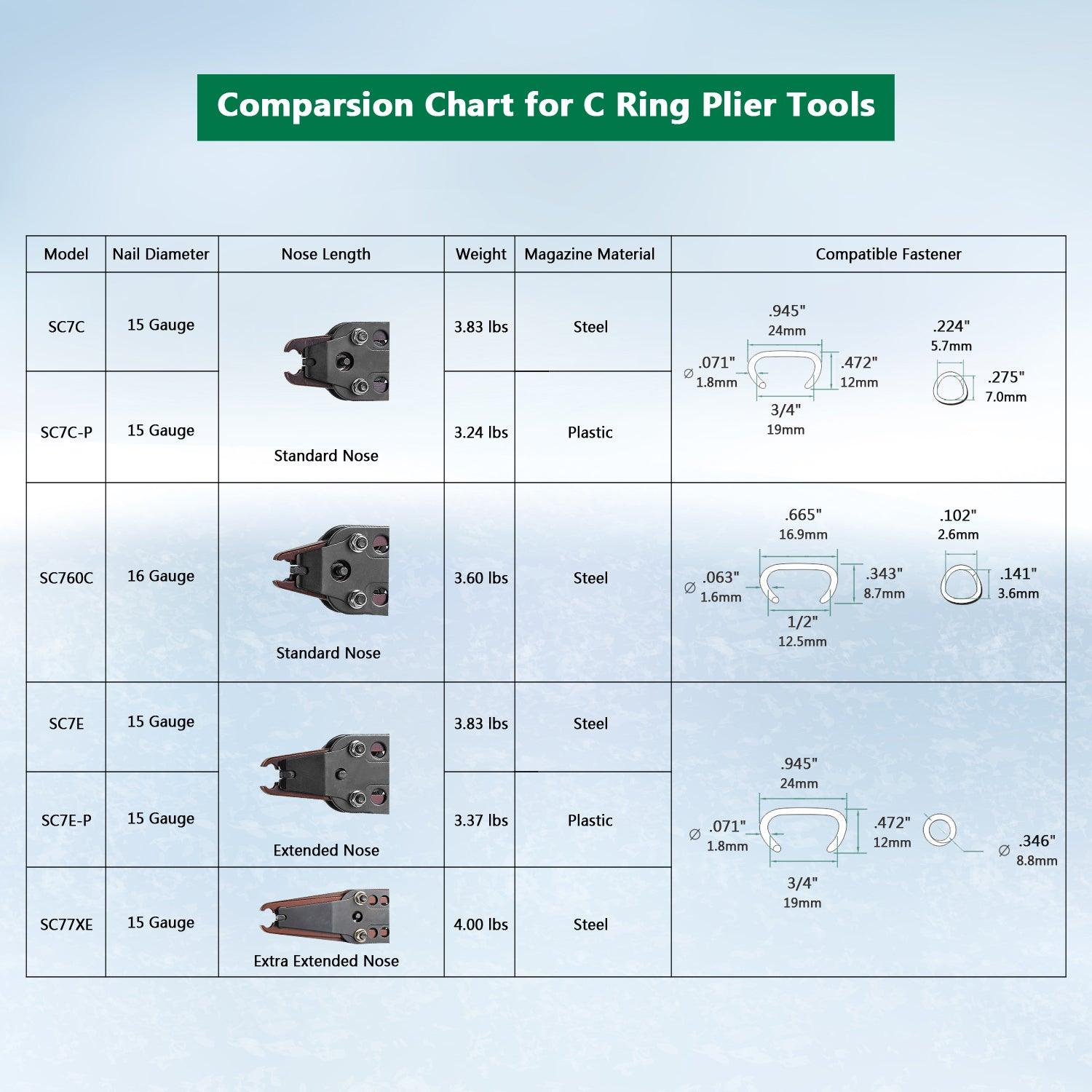

Fastener Specifications
Nail Gauge 16 15 15
15
14 14
Crown Height 8.7 mm 12 mm 12 mm 12 mm 20.5 mm 27.5 mm
Outer Crown Width 1/2" (12.5 mm) 15/16" (24 mm) 15/16" (24 mm) 15/16" (24 mm) 1.69" (43 mm) 2.46" (62.5 mm)
Inner Crown Width .665" (16.9 mm) 3/4" (19 mm) 3/4" (19 mm) 3/4" (19 mm) 1-1/2" (39 mm) 2-1/4" (56 mm)
Nail Diameter .063" (1.6 mm) .070" (1.8 mm) .070" (1.8 mm) .070" (1.8 mm) .079" (2 mm) .079" (2 mm)
Closure Diameter

.102"-.141"

(2.6-3.6 mm)

.217"-.236"

(5.5-6.0 mm)

.346"

(8.8 mm)

.346"

(8.8 mm)

.590"-.709"

(15-18 mm)

.71"-.79"

(18-20 mm)
