14 Gauge 1-1/2" Crown Hog Ring Tool - Model MTC560 - MEITE USA

14 Gauge 1-1/2" Crown Hog Ring Tool - Model MTC560

$385.00
$385.00 - $385.00
$385.00
$308.00
$308.00 - $308.00
$308.00
SKU MTC560

Ask questions

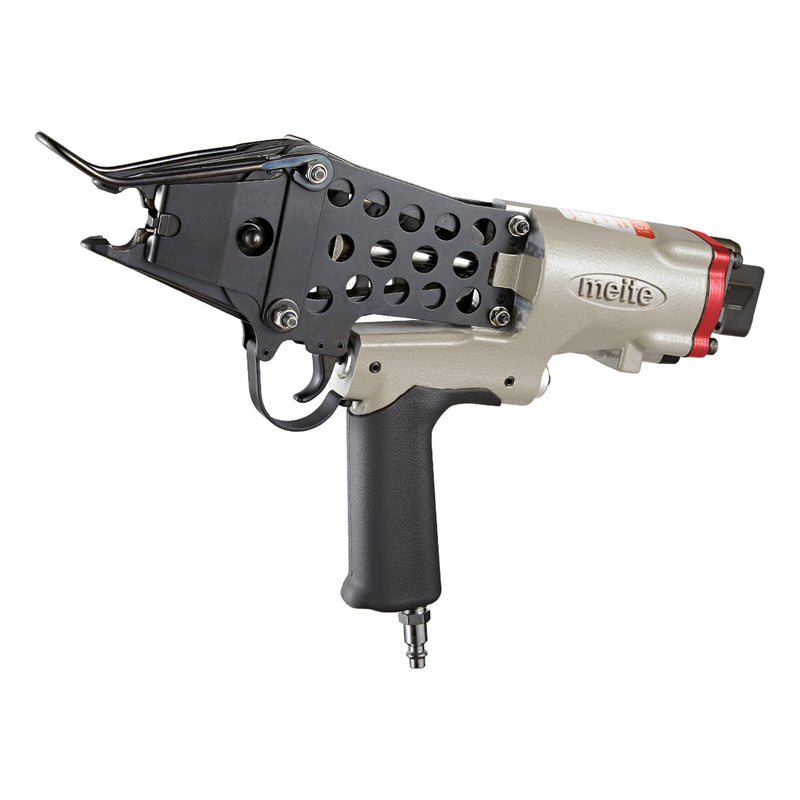

Meite MTC560 is a professional hog ring tool to provide powerful performance

  • Lengthened Nose: Extended nose for hard-to-reach areas
  • Large Capacity: With a large capacity and long magazine
  • Comfortable Grip: Rubber grip can reduce vibration and fatigue and increase productivity
  • Applications: Cages, car seats, spring mattress, bedding, etc.

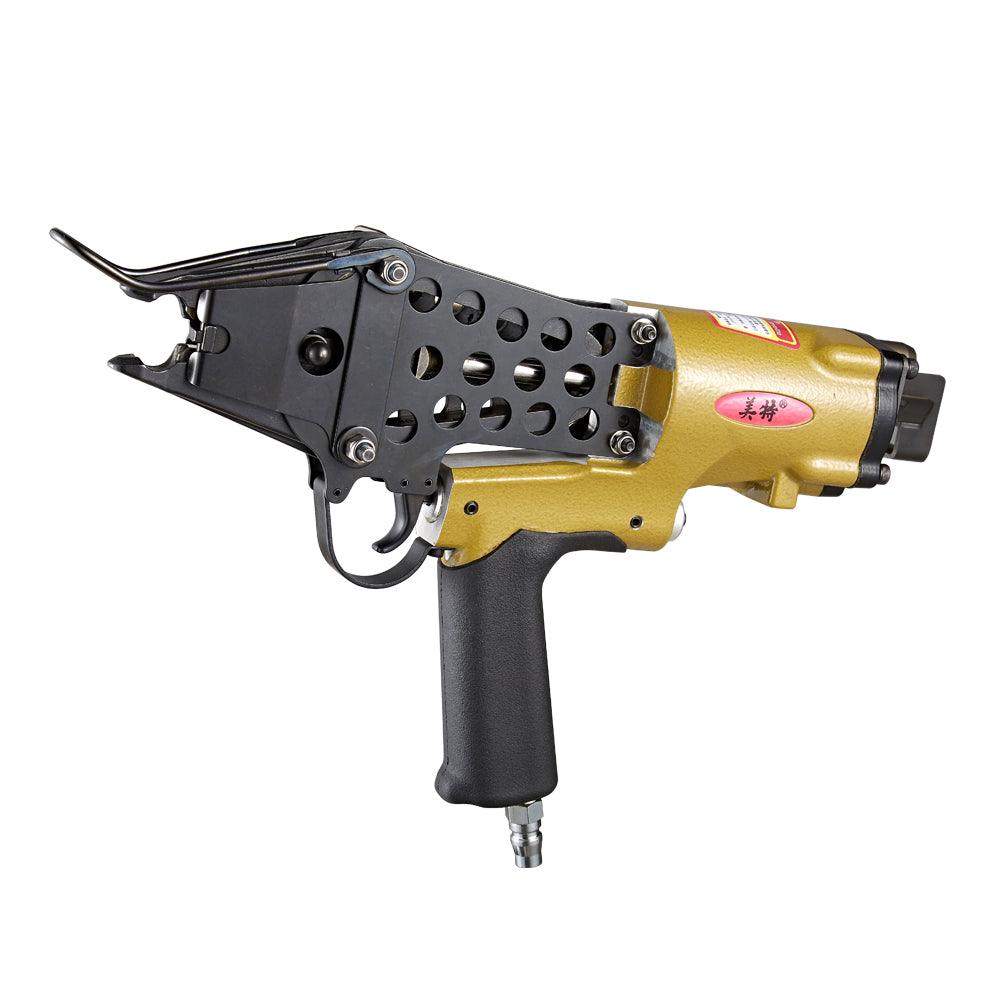

Color: Yellow or gray (Please note that the colors will be sent out randomly, if you would like to specify the color please leave a message when ordering)

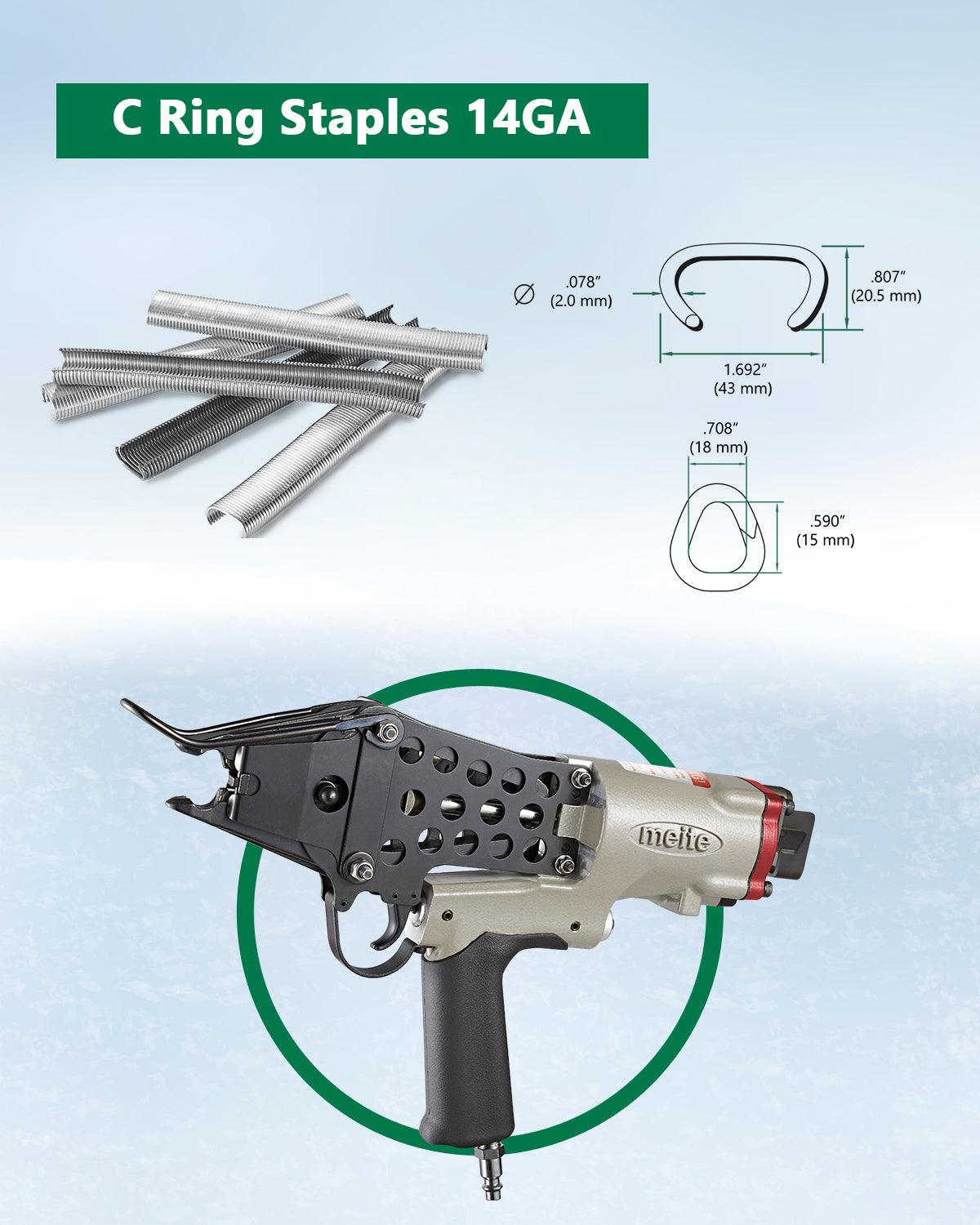

    Fit Fasteners of the following specifications:

    • Shank Diameter: .079" (2mm)
    • Inner Crown: 1-1/2" (39 mm)
    • Ouside Crown: 1-3/4" (43 mm)
    • Gauge Size: 14 Gauge
    • Closure Diameter: .787" - .984" (15 mm-18 mm)

    SC760C SC7C SC7E SC77XE MTC560 MTC600
    Weight (lbs) 3.59 3.83 3.84 4.0 6.21 7.70
    Length (in.) 13
    		 13.31 13.74
    		 14.76
    		 16.61
    		 17.13
    Width (in.) 3.30 3.30 3.30 3.46 5.16
    		 5.98
    Height (in.) 7.91 7.91 7.91 8.50 9.57 10.75
    Capacity (PCS) 100 100 100 100 125 100
    Magazine Material Steel Steel Steel Steel Steel Steel
    Fastener Specifications
    Nail Gauge 16 15 15
    		 15
    		 14 14
    Crown Height 8.7 mm 12 mm 12 mm 12 mm 20.5 mm 27.5 mm
    Outer Crown Width 1/2" (12.5 mm) 15/16" (24 mm) 15/16" (24 mm) 15/16" (24 mm) 1.69" (43 mm) 2.46" (62.5 mm)
    Inner Crown Width .665" (16.9 mm) 3/4" (19 mm) 3/4" (19 mm) 3/4" (19 mm) 1-1/2" (39 mm) 2-1/4" (56 mm)
    Nail Diameter .063" (1.6 mm) .070" (1.8 mm) .070" (1.8 mm) .070" (1.8 mm) .079" (2 mm) .079" (2 mm)
    Closure Diameter

    .102"-.141"

    (2.6-3.6 mm)

    .217"-.236"

    (5.5-6.0 mm)

    .346"

    (8.8 mm)

    .346"

    (8.8 mm)

    .590"-.709"

    (15-18 mm)

    .71"-.79"

    (18-20 mm)
