16 Gauge 1/2'' Hog Ring Tool - Model SC760C
-
Regular Price
-
$216.00
-
Sale Price
-
$216.00
-
Regular Price
-
$260.00
Sold Out
-
Unit Price
- per
- Regular Price
- $216.00
- Sale Price
- $216.00
- Regular Price
- $260.00
- Unit Price
- per

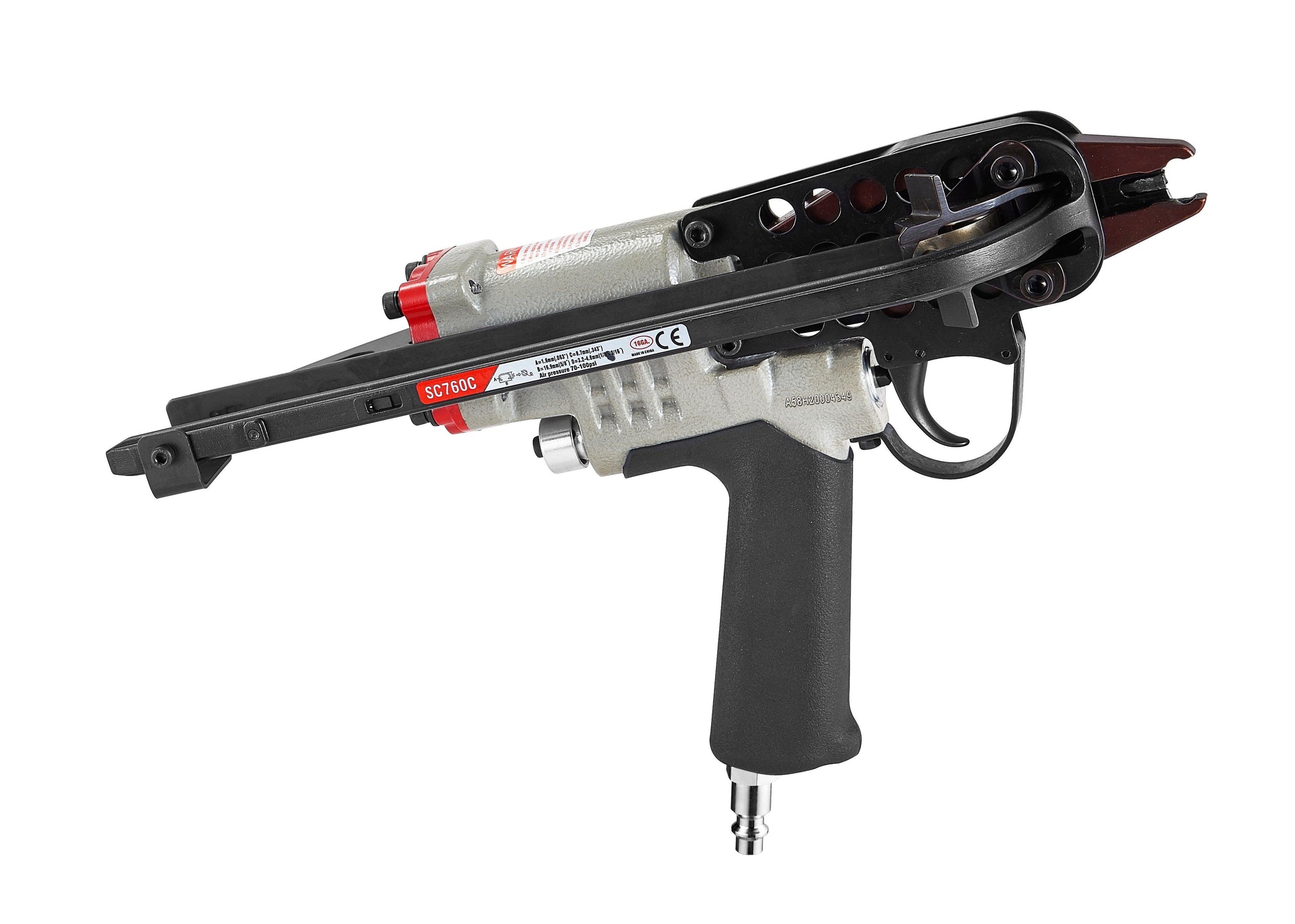

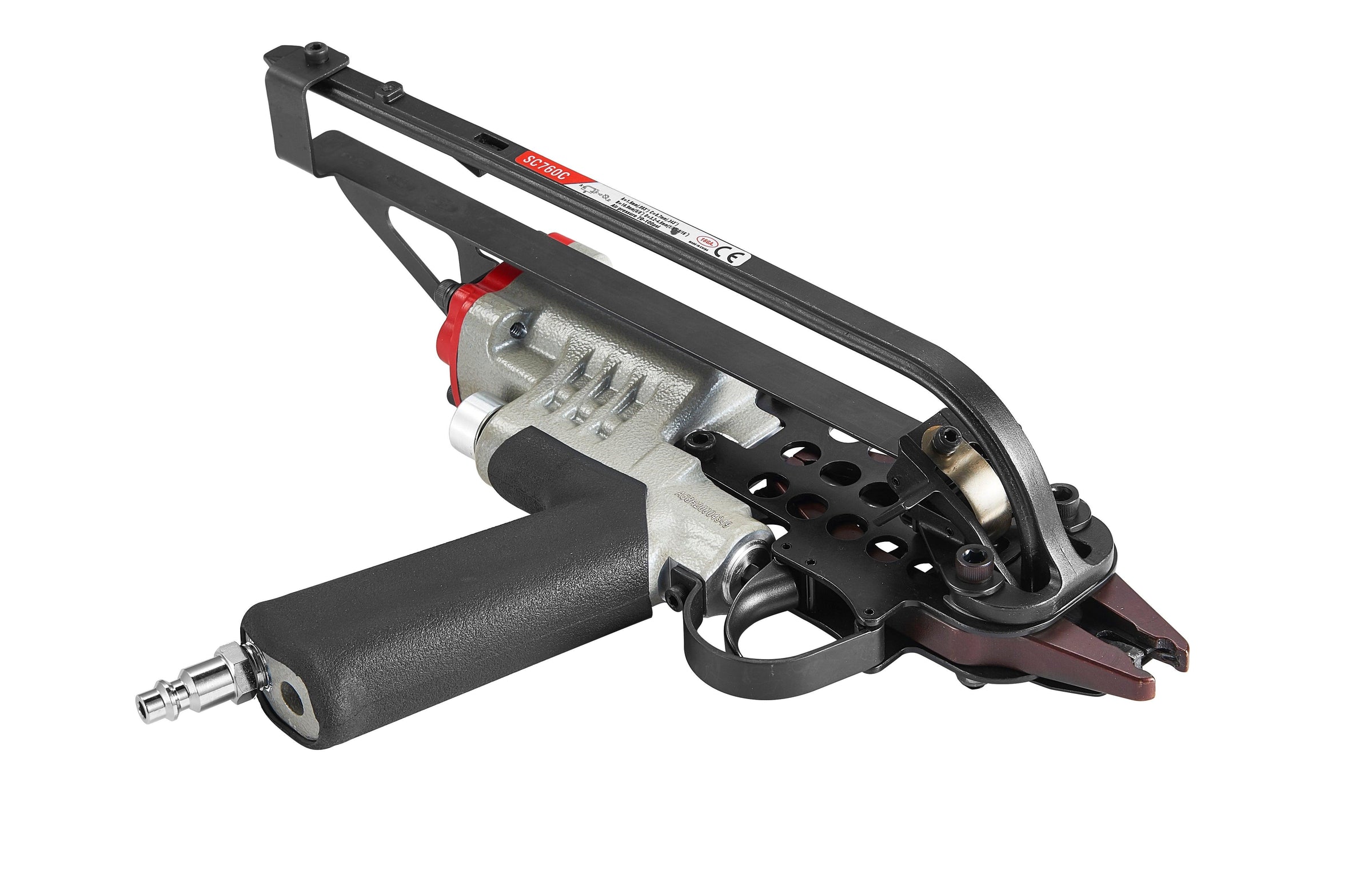

New model hog ring/c ring tool nail gun, upgraded from model SC760B, with improved trigger for better usage and stability
An air-powered pneumatic tool, use with an air compressor

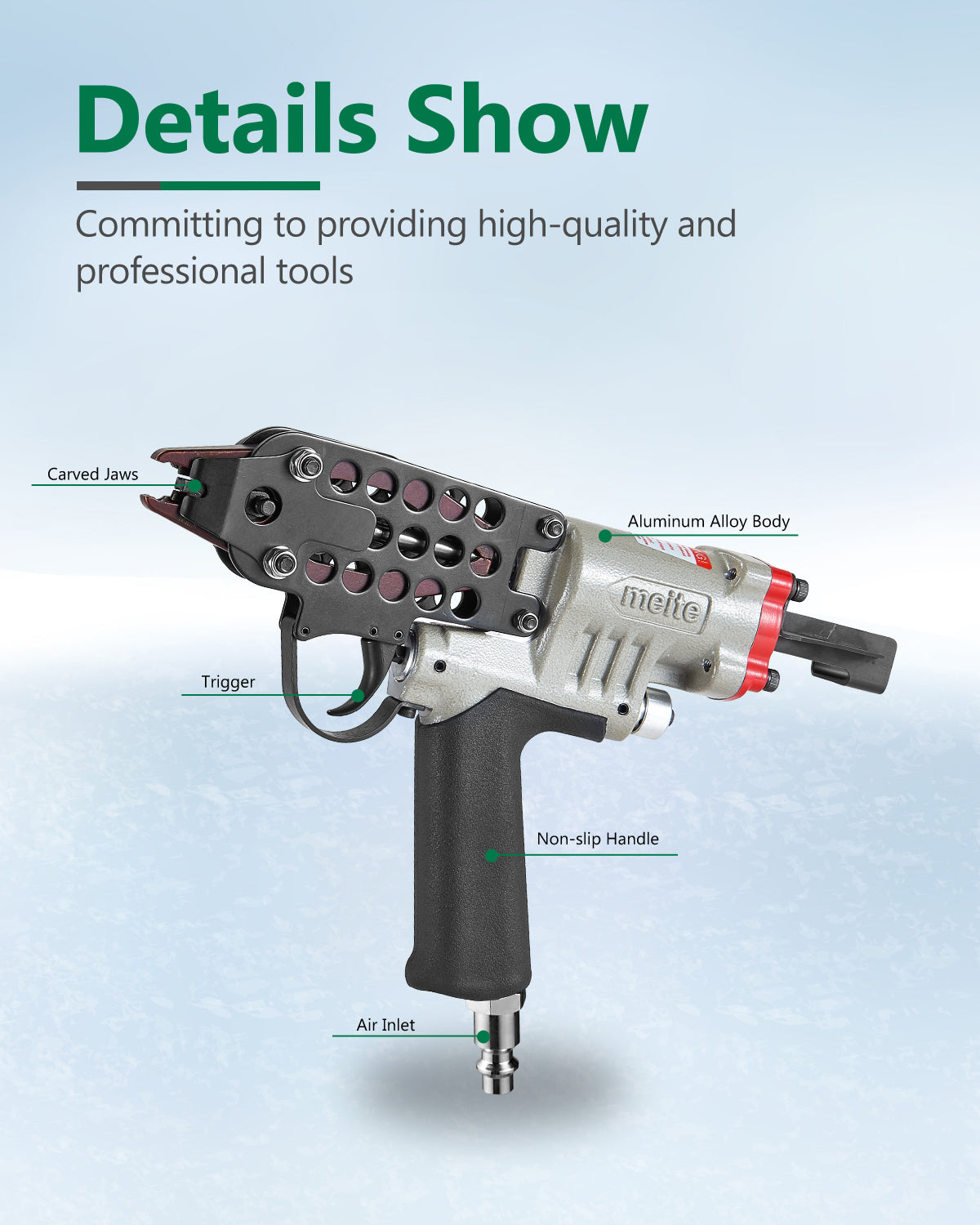

[Precision Jaws] High precision processing, more wear-resistant, and higher stability.
[Comfortable Grip] Rubber grip can reduce vibration and fatigue and increase productivity.
[Applications] Cages, car seats, spring mattress, bag closure, etc.

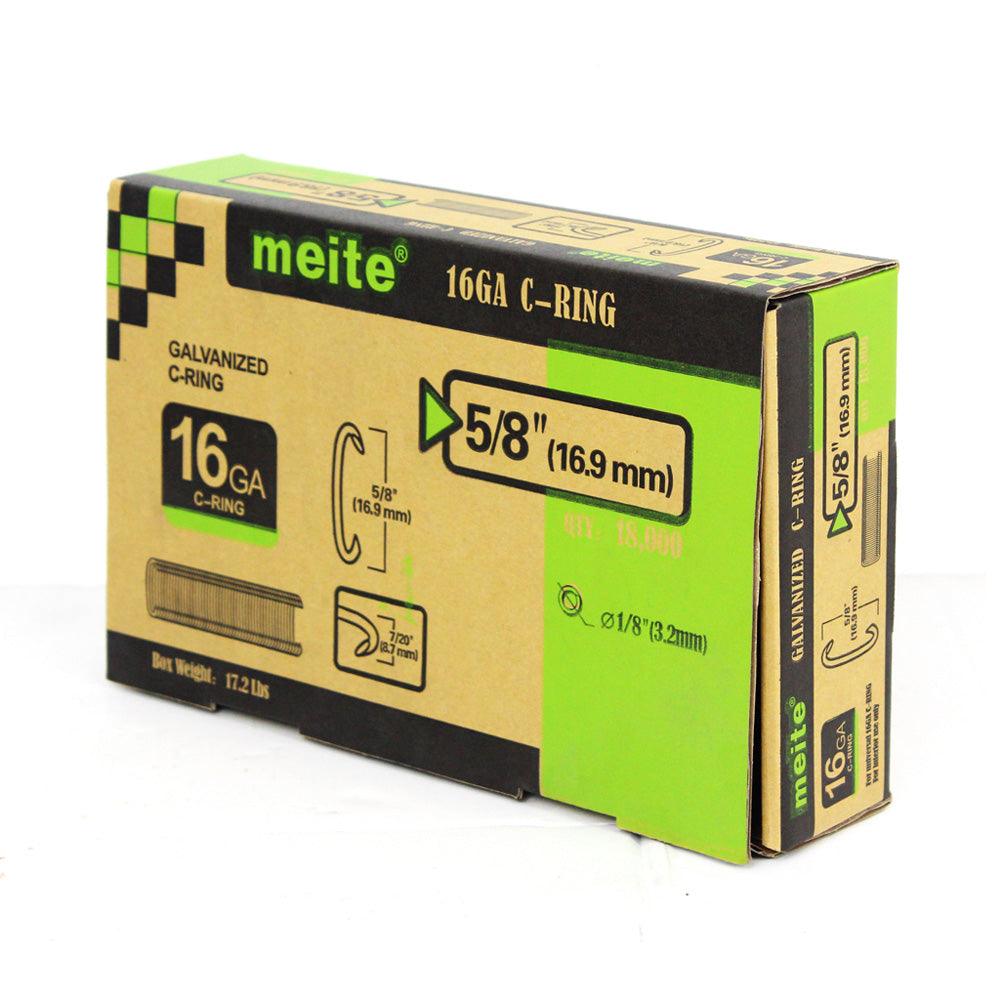

Fastener: Meite 16 Gauge Hog Ring Plier Or Staples Series Inside Diameter of 3.2mm - 4.8 mm

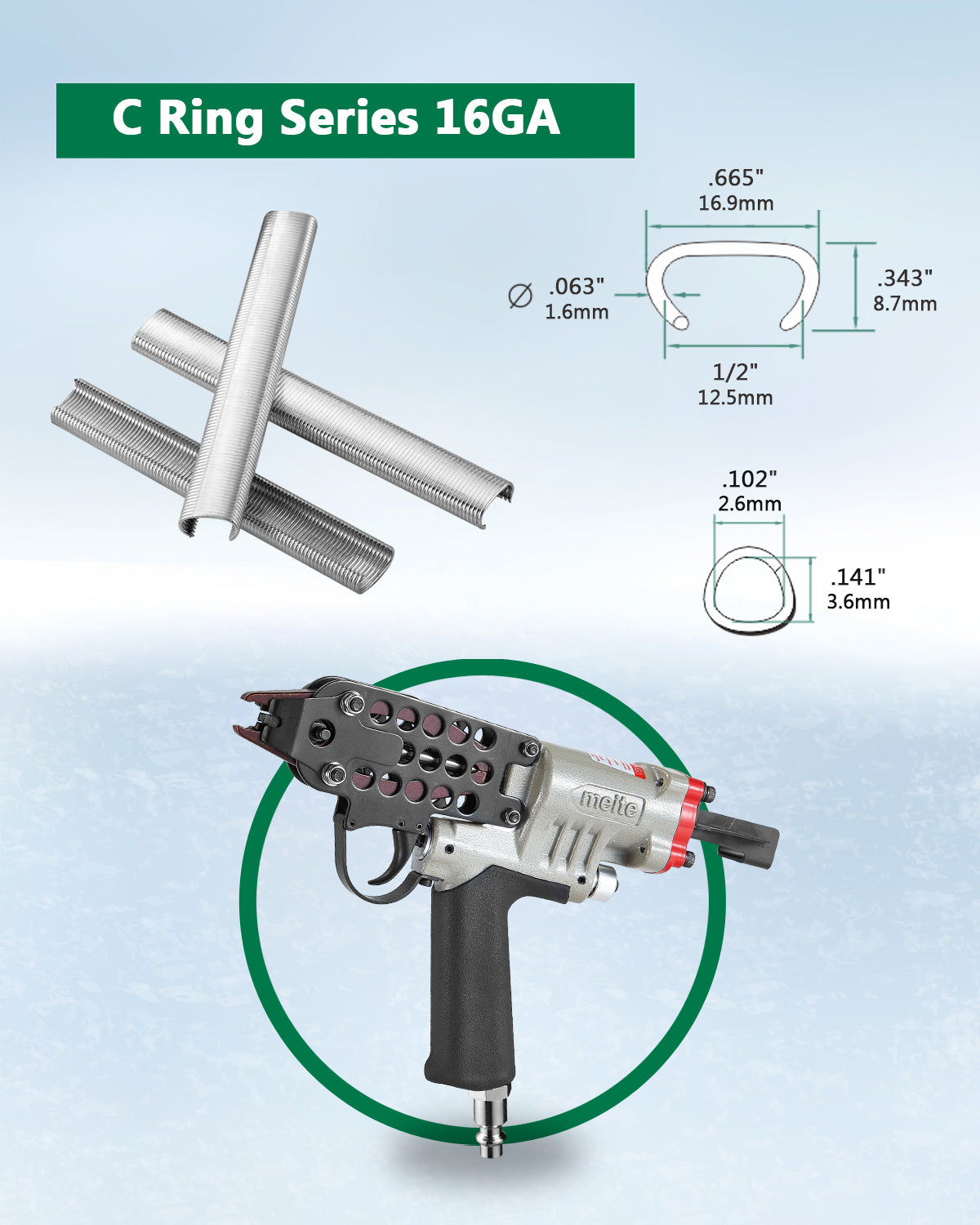

Compatible with Fasteners of the following specifications:Wire Diameter: 0.063" (1.6mm);
Closure Diameter: 0.102" - 0.142" (2.6mm - 3.6mm);
Outside Crown: 0.67" (16.9mm);
Inner Crown: 1/2" (12.5mm);
Gauge Size: 16 Gauge;
Nail Height: 0.472" (12mm)
- SKU: SC760C
- In Stock: 24
- Weight: 3.46 lb
- Product Type: Hog Ring Tool
- Brand: Meite USA
In Depth

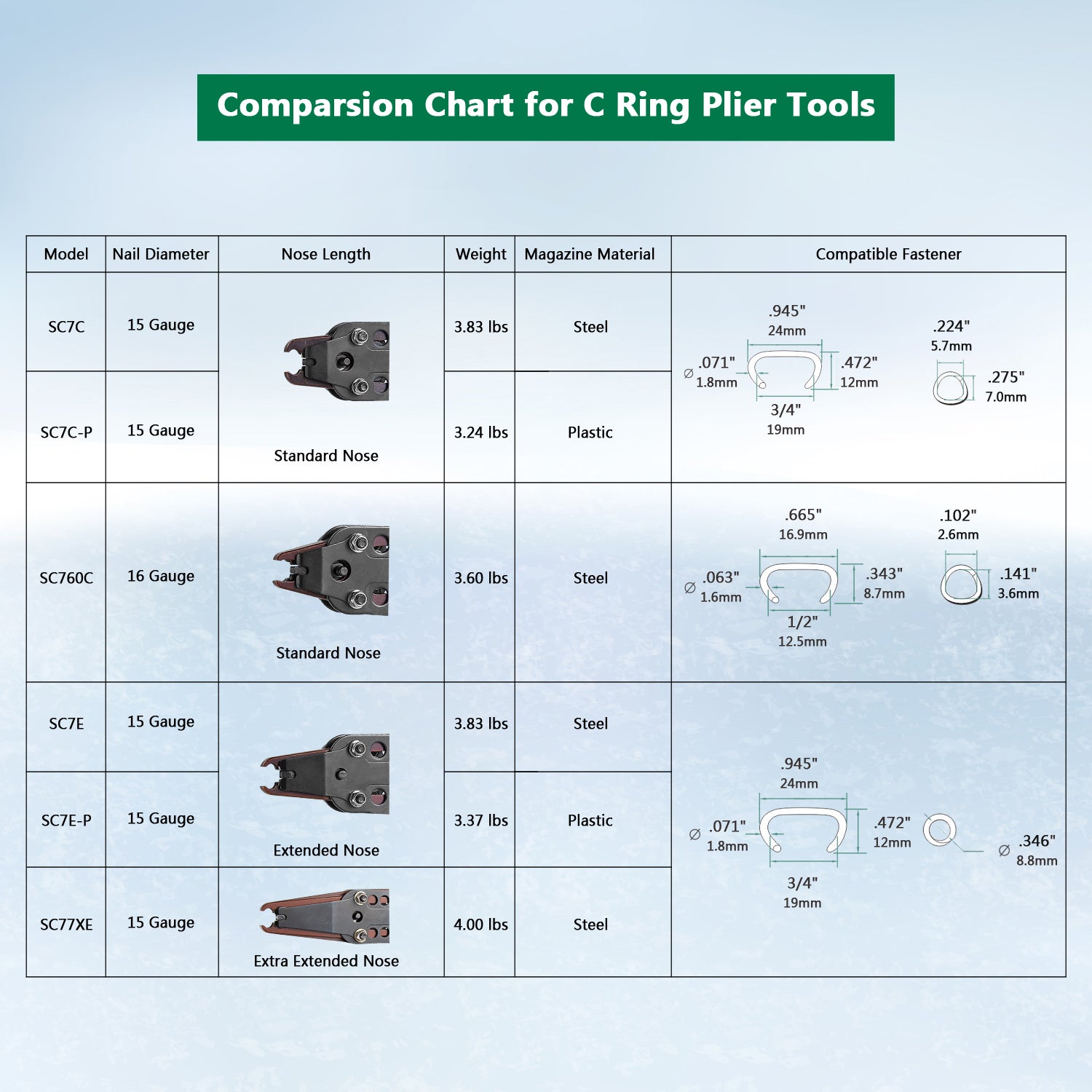

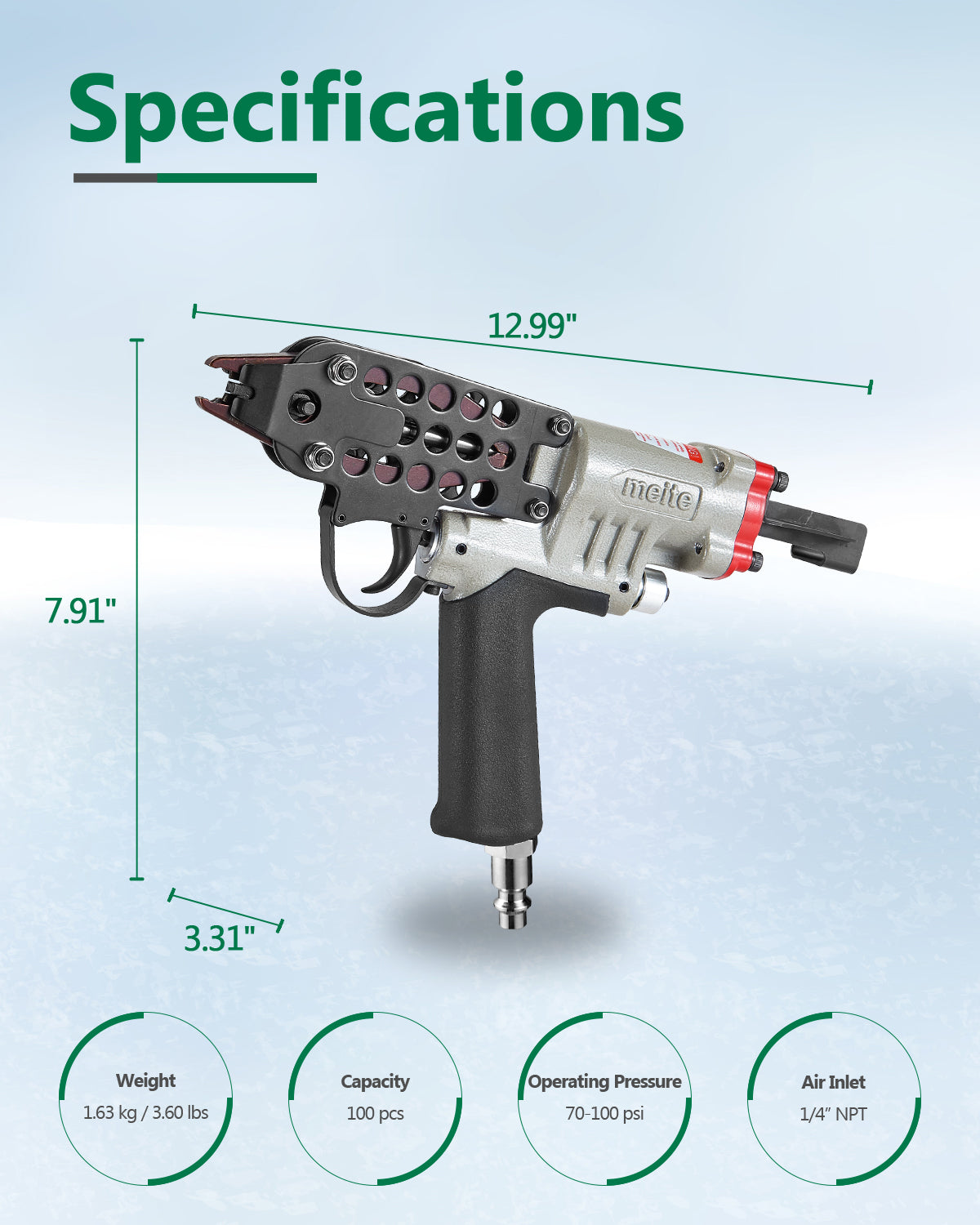

| SC760C | SC7C | SC7C-P | SC7E | SC7E-P | SC77XE | MTC560 | MTC600 | |
| Weight (lbs) | 3.59 | 3.83 | 3.24 | 3.84 | 3.37 | 4.0 | 6.21 | 7.70 |
| Length (in.) | 13 |
13.31 | 13 | 13.74 |
13.74 | 14.76 |
16.61 |
17.13 |
| Width (in.) | 3.30 | 3.30 | 3.30 | 3.30 | 3.30 | 3.46 | 5.16 |
5.98 |
| Height (in.) | 7.91 | 7.91 | 7.91 | 7.91 | 7.91 | 8.50 | 9.57 | 10.75 |
| Capacity (PCS) | 100 | 100 | 100 | 100 | 100 | 100 | 125 | 100 |
| Magazine Material | Steel | Steel | Plastic | Steel | Plastic | Steel | Steel | Steel |
| Fastener Specifications | ||||||||
| Nail Gauge | 16 | 15 | 15 | 15 |
15 | 15 |
14 | 14 |
| Crown Height | 8.7 mm | 12 mm | 12 mm | 12 mm | 12 mm | 12 mm | 20.5 mm | 27.5 mm |
| Outer Crown Width | 1/2" (12.5 mm) | 15/16" (24 mm) | 15/16" (24 mm) | 15/16" (24 mm) | 15/16" (24 mm) | 15/16" (24 mm) | 1.69" (43 mm) | 2.46" (62.5 mm) |
| Inner Crown Width | .665" (16.9 mm) | 3/4" (19 mm) | 3/4" (19 mm) | 3/4" (19 mm) | 3/4" (19 mm) | 3/4" (19 mm) | 1-1/2" (39 mm) | 2-1/4" (56 mm) |
| Nail Diameter | .063" (1.6 mm) | .070" (1.8 mm) | .070" (1.8 mm) | .070" (1.8 mm)c | .070" (1.8 mm) | .070" (1.8 mm) | .079" (2 mm) | .079" (2 mm) |
| Closure Diameter |
.102"-.141" (2.6-3.6 mm) |
.217"-.236" (5.5-6.0 mm) |
.217"-.236" (5.5-6.0 mm) |
.346" (8.8 mm) |
.217"-.236" (5.5-6.0 mm) |
.346" (8.8 mm) |
.590"-.709" (15-18 mm) |
.71"-.79" (18-20 mm) |
