15 Gauge 3/4" Extended Nose Hog Ring Tool - Steel Magazine - Model SC7E - MEITE USA

15 Gauge 3/4" Extended Nose Hog Ring Tool - Steel Magazine - Model SC7E

$225.00
$225.00 - $225.00
$225.00
$180.00
$180.00 - $180.00
$180.00
SKU SC7E

Ask questions

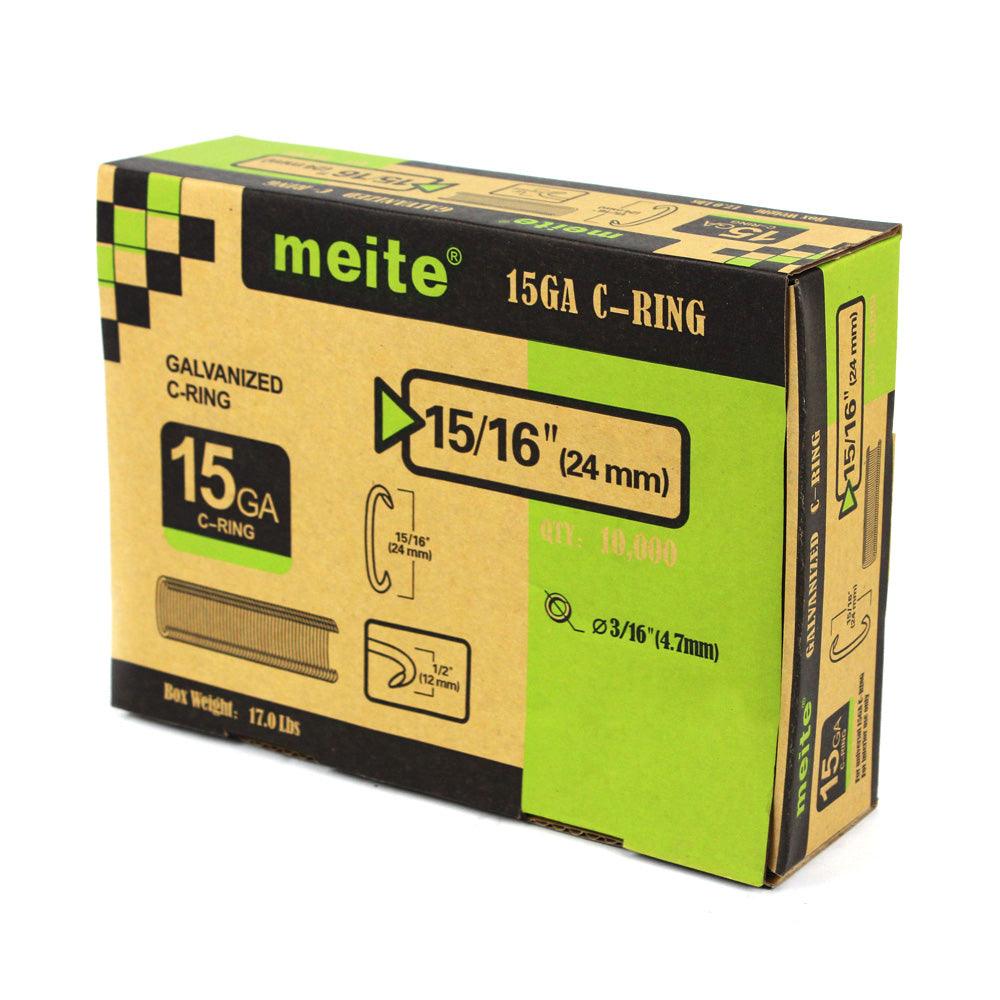

[Compatible Fasteners] meite 15 Gauge Galvanized Hog Rings - 15/16" Crown
meite 15 Gauge Stainless Steel Hog Rings - 3/4" Inner Crown

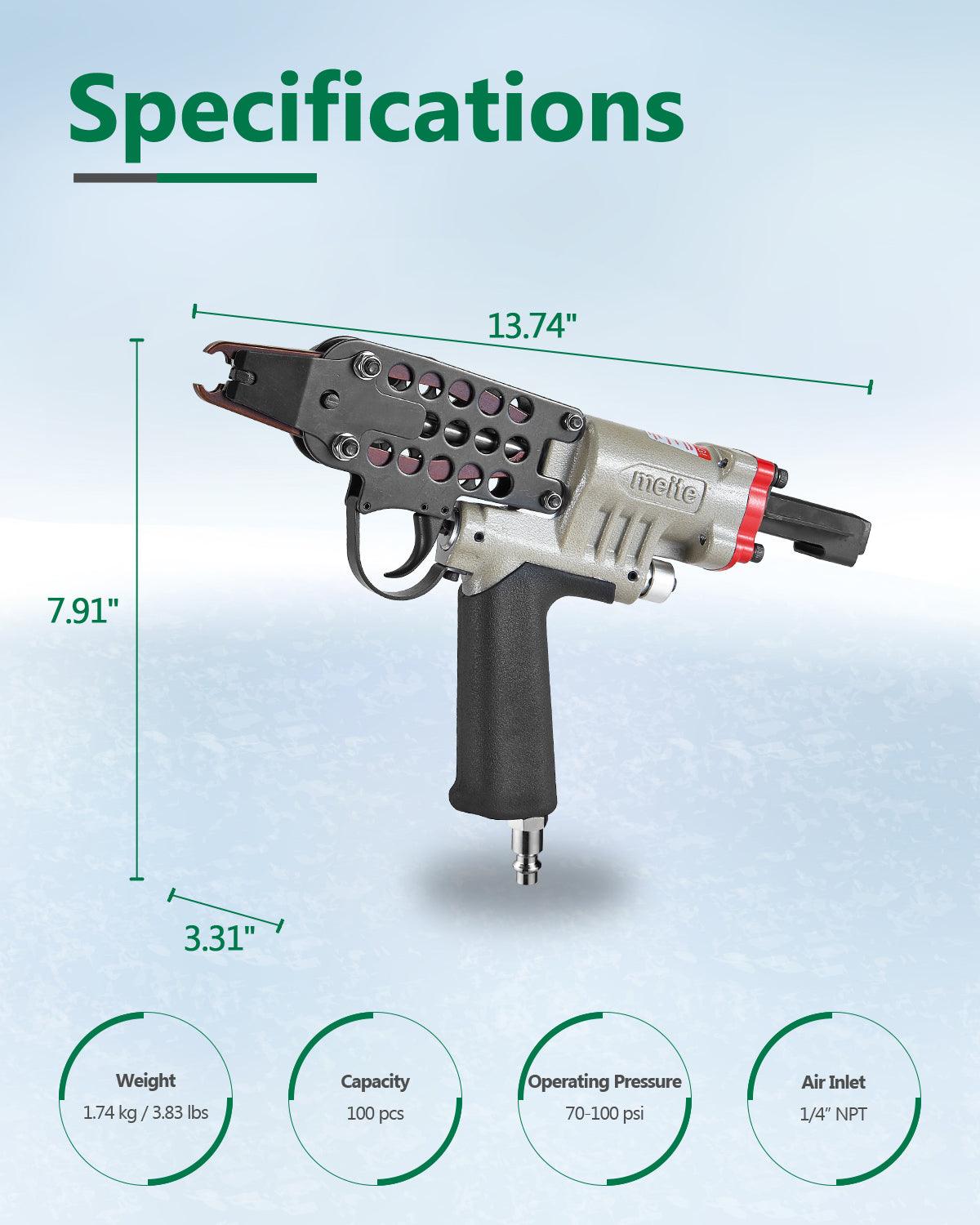

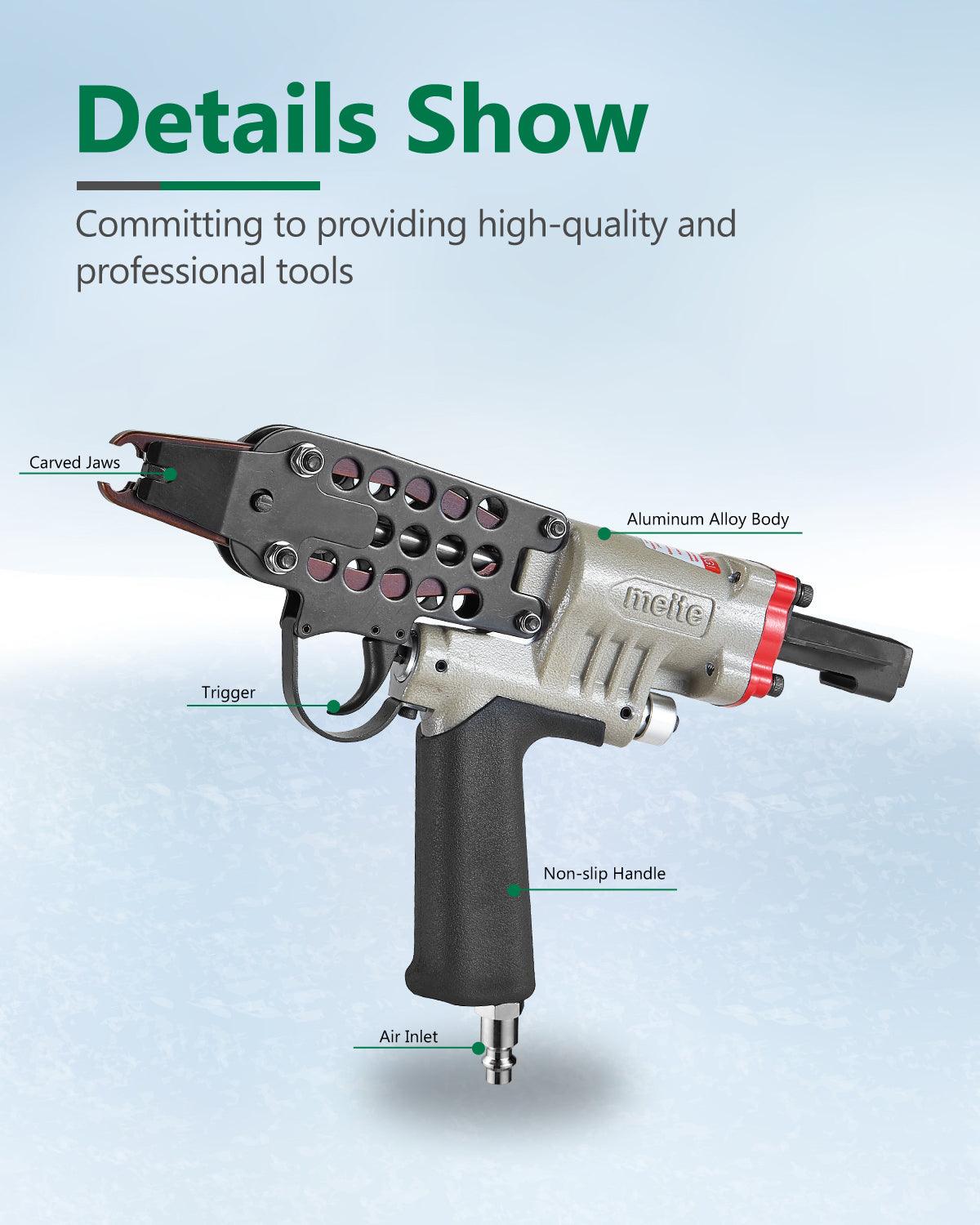

  • Lightweight and Maneuverable: At 3.8 pounds, SC7E features steel magazines and is easy to maneuver, light enough for all-day work, and reduces operator fatigue
  • Extended Nose: Extended nose for hard-to-reach areas and make a round-closure shape
  • Comfortable Grip: Rubber grip can reduce vibration and fatigue and increase productivity
  • Applications: Cages, car seats, spring mattress, bedding, etc.

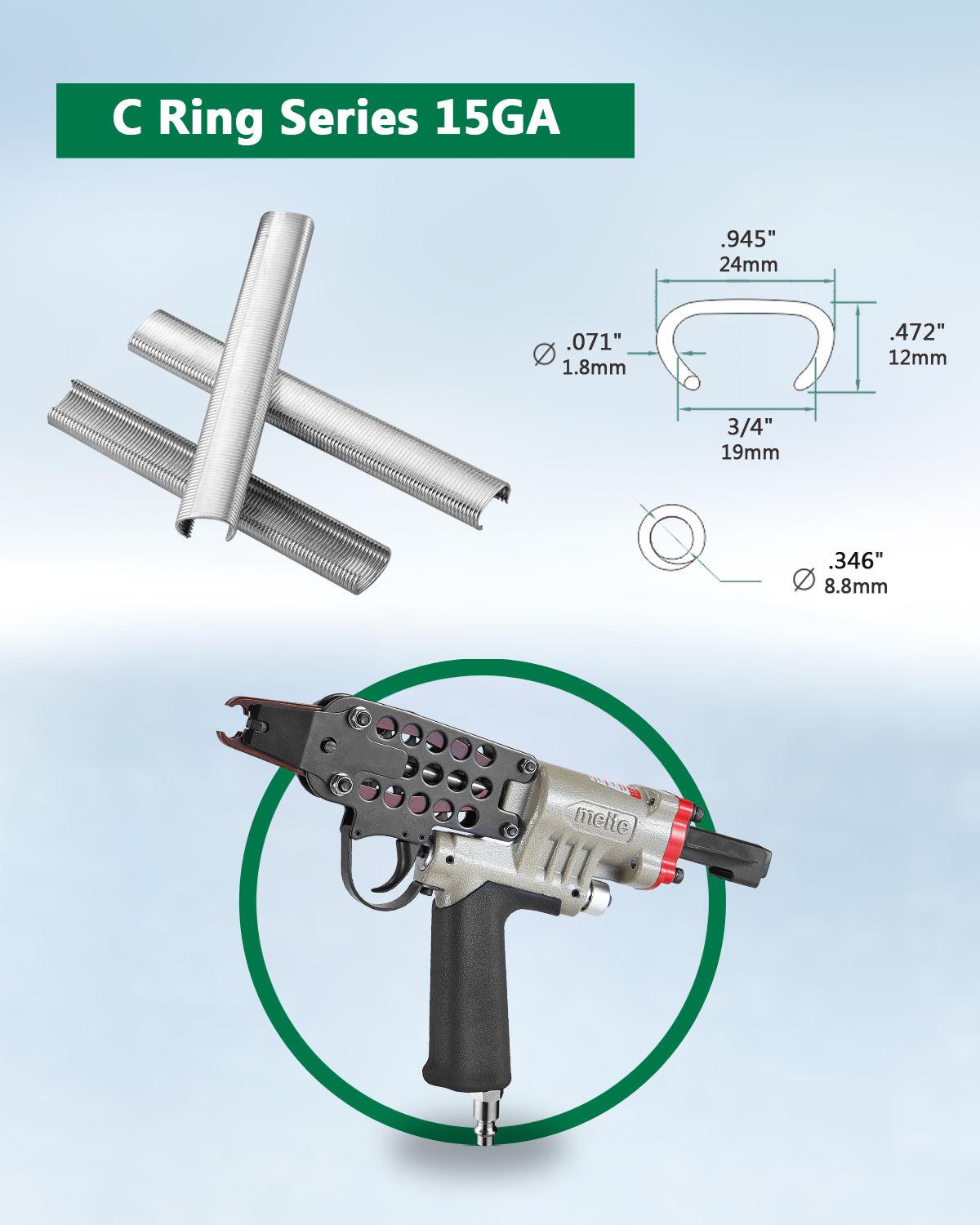

Fit Fasteners of the following specifications:

  • Shank Diameter: 1.8mm (0.071")
  • Outside Crown: 24mm (15/16")
  • Gauge Size: 15 GA
  • Closure Diameter: 8.8mm (0.346")
  • Nail Height: 0.472"/12mm

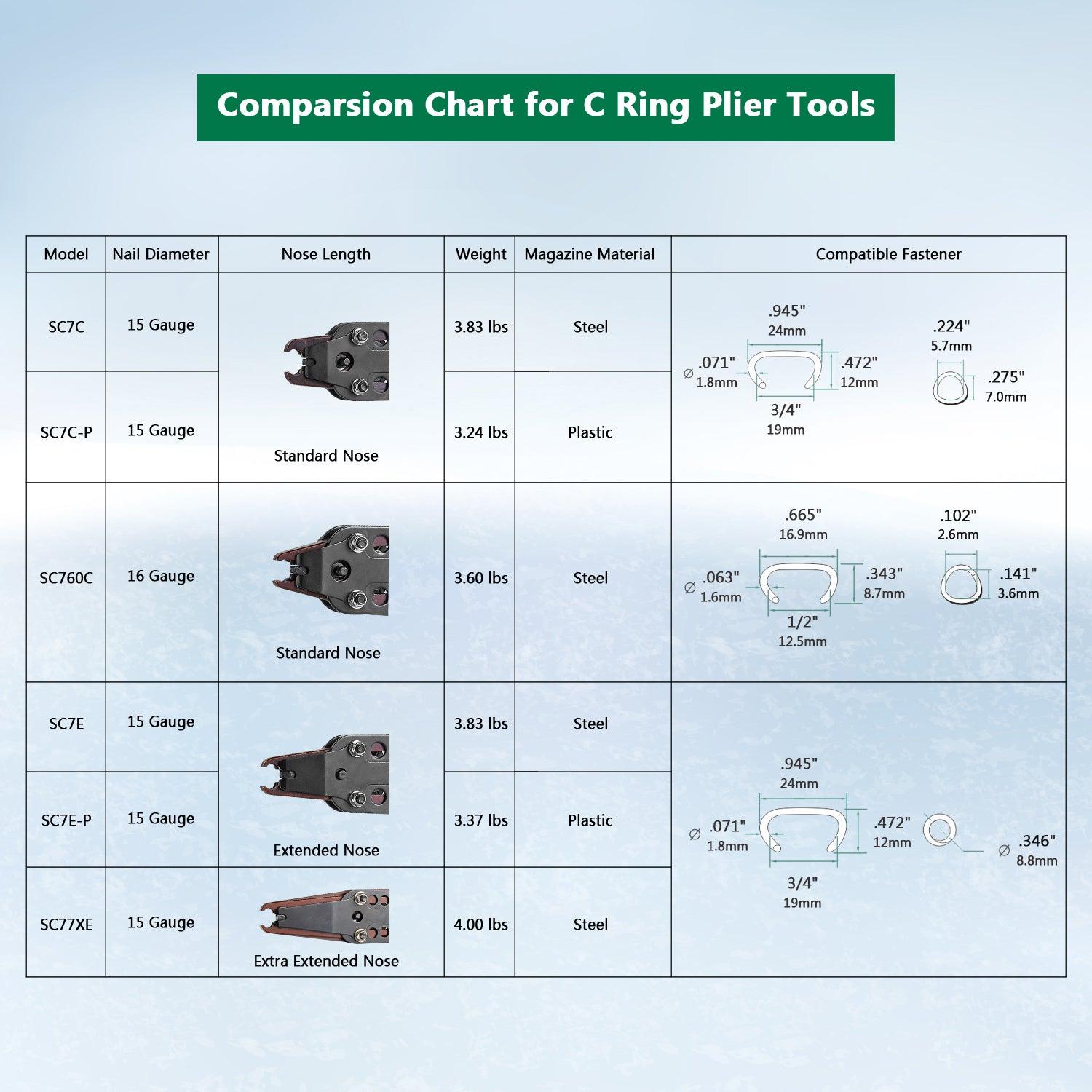

SC760C SC7C SC7E SC77XE MTC560 MTC600
Weight (lbs) 3.59 3.83 3.84 4.0 6.21 7.70
Length (in.) 13
 13.31 13.74
 14.76
 16.61
 17.13
Width (in.) 3.30 3.30 3.30 3.46 5.16
 5.98
Height (in.) 7.91 7.91 7.91 8.50 9.57 10.75
Capacity (PCS) 100 100 100 100 125 100
Magazine Material Steel Steel Steel Steel Steel Steel
Fastener Specifications
Nail Gauge 16 15 15
 15
 14 14
Crown Height 8.7 mm 12 mm 12 mm 12 mm 20.5 mm 27.5 mm
Outer Crown Width 1/2" (12.5 mm) 15/16" (24 mm) 15/16" (24 mm) 15/16" (24 mm) 1.69" (43 mm) 2.46" (62.5 mm)
Inner Crown Width .665" (16.9 mm) 3/4" (19 mm) 3/4" (19 mm) 3/4" (19 mm) 1-1/2" (39 mm) 2-1/4" (56 mm)
Nail Diameter .063" (1.6 mm) .070" (1.8 mm) .070" (1.8 mm) .070" (1.8 mm) .079" (2 mm) .079" (2 mm)
Closure Diameter

.102"-.141"

(2.6-3.6 mm)

.217"-.236"

(5.5-6.0 mm)

.346"

(8.8 mm)

.346"

(8.8 mm)

.590"-.709"

(15-18 mm)

.71"-.79"

(18-20 mm)
