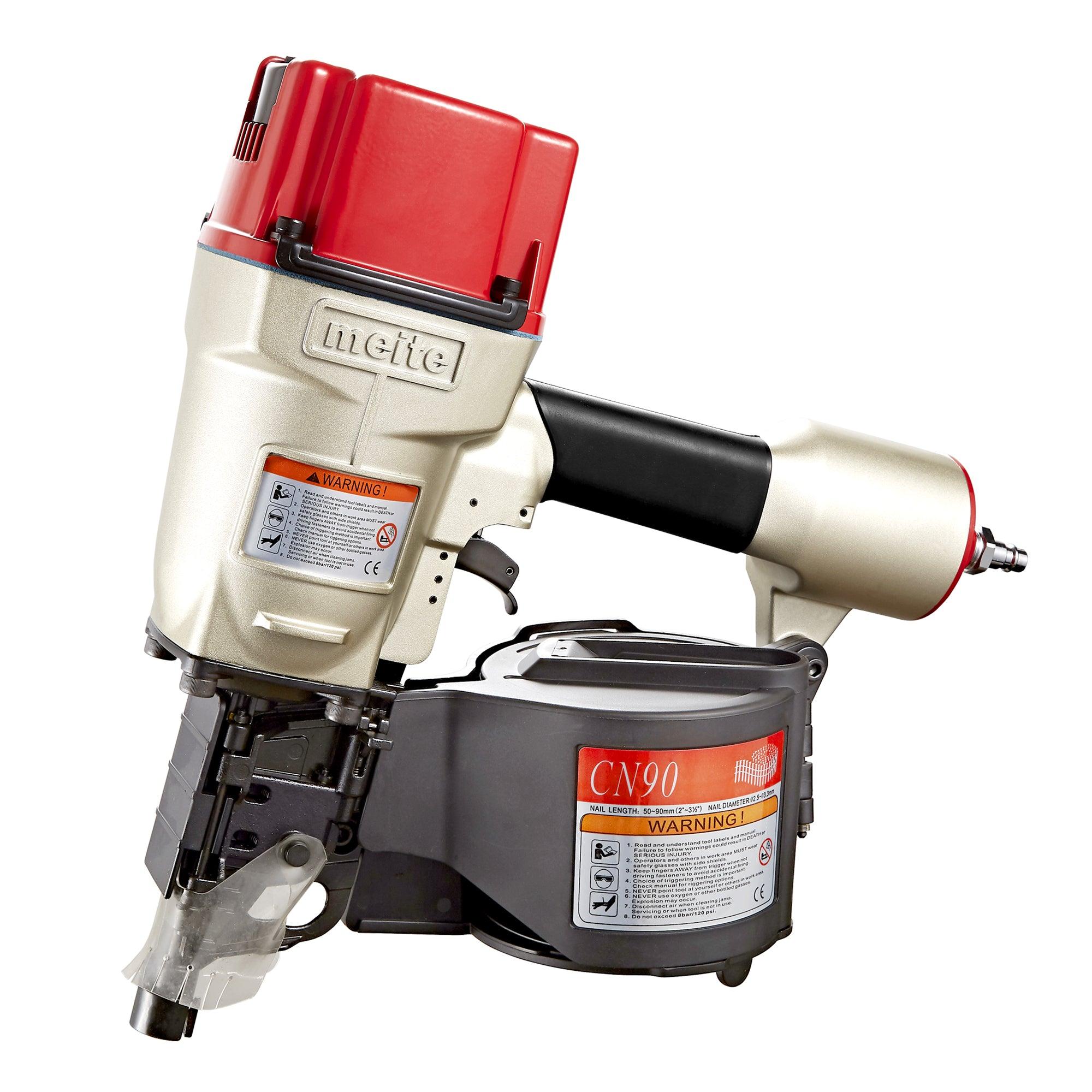

15 Degree 2-1/4" to 3-1/2" Industrial Coil Nailer--CN90

Regular Price
$242.00
Sale Price
$242.00
Regular Price
$269.00
Sold Out
Unit Price
per

Only 10 left!
Industrial Coil Nailer Specifications

Ergonomic Design: Powerful, rapid nailing performance, well-balanced.

Rugged Magazine: With adjustable depth control.

High Capacity: Drives about 300 nails continuously by full-loading.

Applications: Pallets, wood case, packaging, decking, sheathing, etc.

Industrial-Grade: Siding coil nailer, powerful for heavy-duty applications.

Fastener: 15 Degree Wire Coil .099"-.131" Shank Diameter in 2-1/4" - 3-1/2" Length.

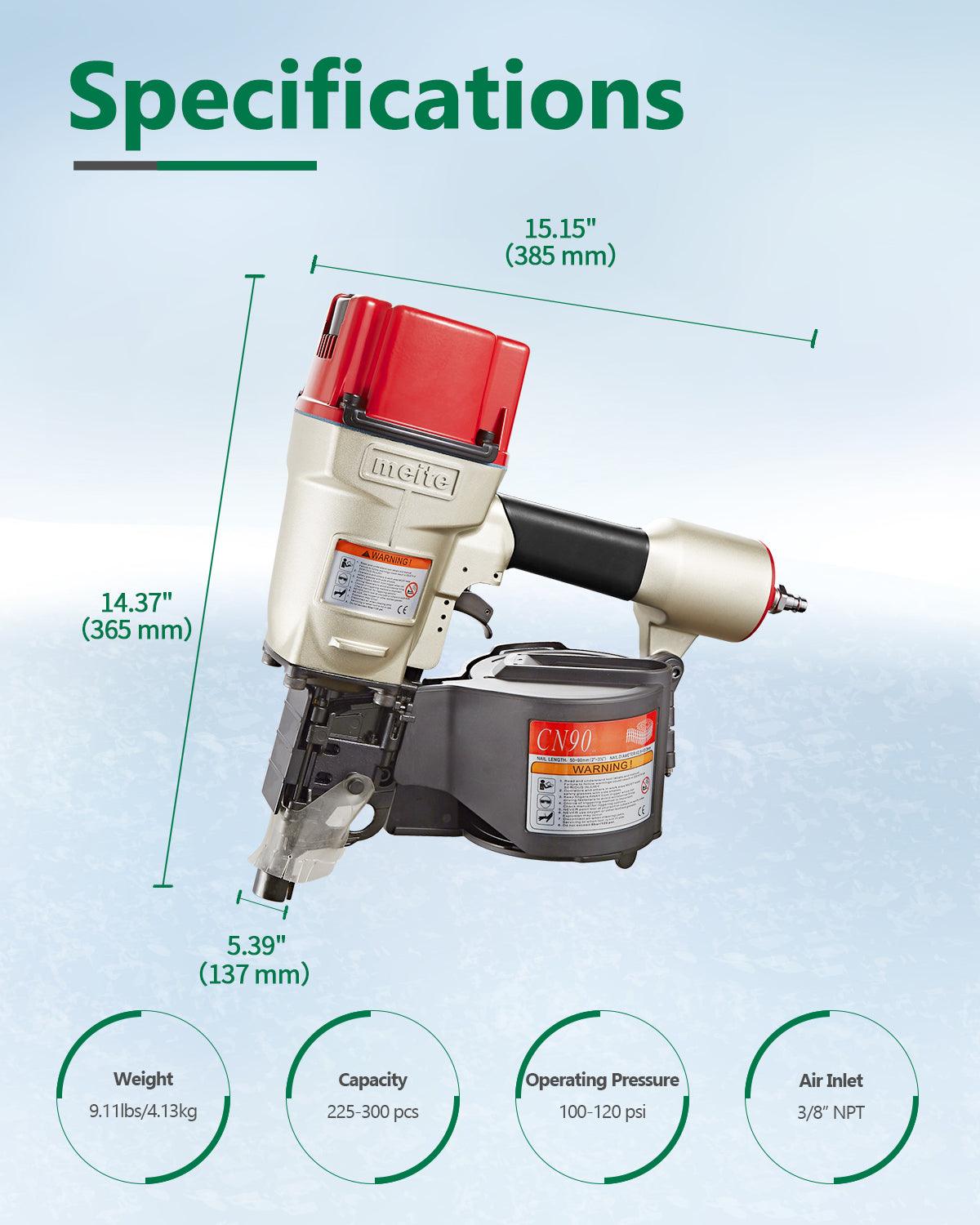

Technical Specifications:

  CN55 CN65 CN70B CN80B CN90
Weight 6.06 lbs (2.75 kg) 6.53 lbs (2.96 kg) 8.46 lbs (3.84 kg) 8.86 lbs (4.02kg) 9.11 lbs (4.13kg)
Length 10.63" (270 mm) 12.20" (310 mm) 13.23" (336 mm) 13.66" (347 mm) 15.15" (385 mm)
Width 5.16" (131 mm) 5.11" (130 mm) 5.63" (143 mm) 5.39" (137 mm) 5.39" (137 mm)
Height 11.14" (283 mm) 12.91" (328 mm) 12.52" (318 mm) 13.70" (348 mm) 14.37" (365 mm)
Capacity 300-400 300 225-300 225-300 225-300
Recommend Operating Pressure

85~115psi

(6-8bar)

85~115psi

(6-8bar)

85~115psi

(6-8bar)

85~115psi

(6-8bar)

85~115psi

(6-8bar)

Fastener Specifications
Nail Length

1-1/4" to 2-1/4"

(32 mm - 57 mm)

1-1/2"- 2-1/2"

(38-65 mm)

2-1/4"- 2-3/4"

(57-70 mm)

2"- 3-1/4"

(50-83 mm)

2-1/4"- 3-1/2"

(57-90 mm)

Head Diameter

0.197" - 0.224"

(5.0 mm - 5.7 mm)

0.090"-0.130"

(2.3-3.3 mm)

0.090"-0.114"

(2.3-2.9 mm)

0.098"-0.112"

(2.5-3.1 mm)

0.098"-0.130"

(2.5-3.3 mm)

Shank Diameter

0.083" - 0.090"

(2.1 mm - 2.3 mm)

0.224"-0.287"

(5.7-7.3 mm)

0.224"-0.276"

(5.5-5.7 mm)

0.236"-0.276"

(6.0-7.0 mm)

0.244"-0.283"

(6.2-7.2 mm)

Shank Type Smooth/Screw/Ring Smooth/Screw/Ring Smooth/Screw/Ring Smooth/Screw/Ring Smooth/Screw/Ring

Discover the unmatched precision and durability of our coil nailers for your heavy-duty nailing needs.
