framing nailer

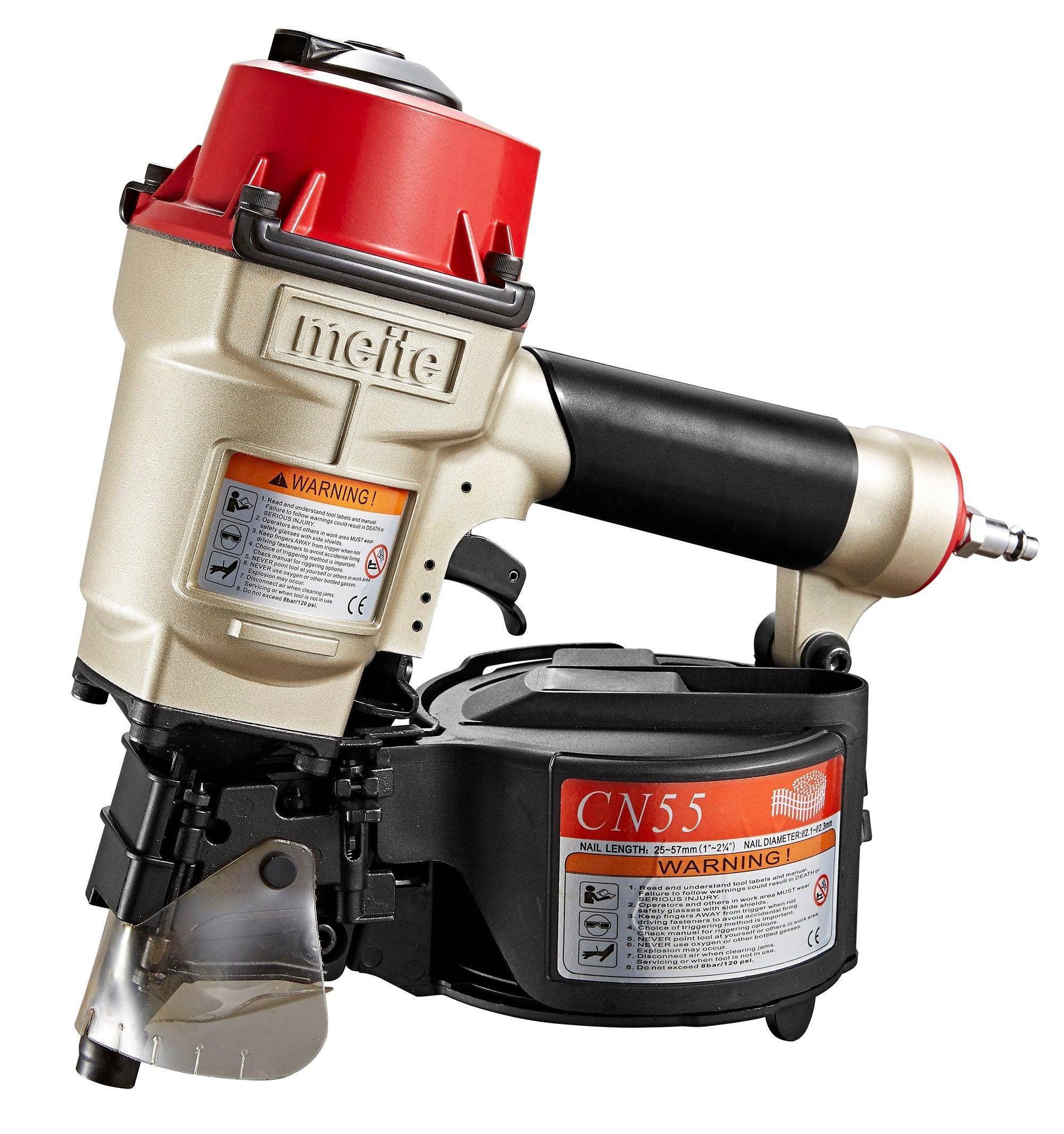

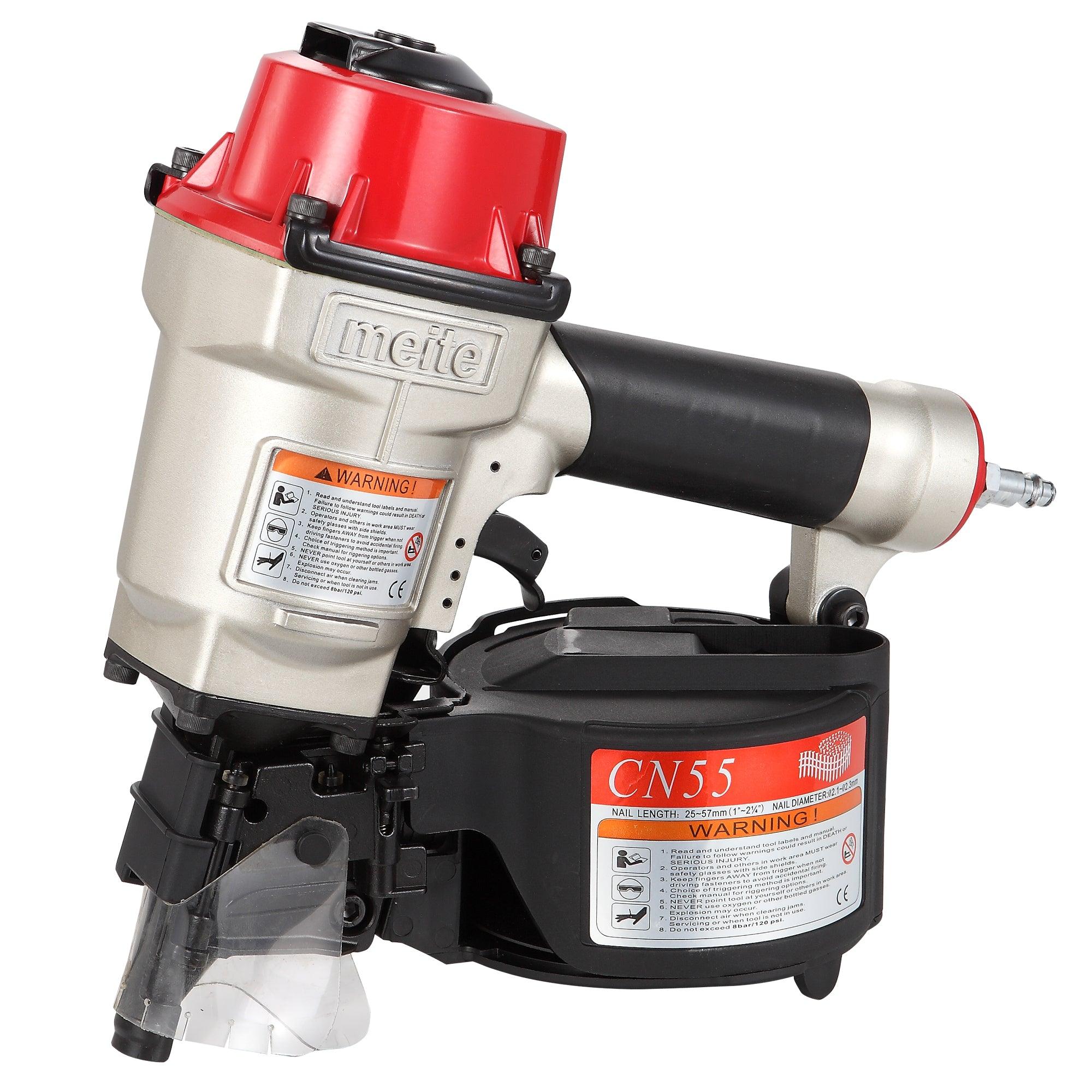

15 Degree 1-1/4" to 2-1/4" Industrial Coil Nailer--CN55

$170.00
$170.00 - $170.00
$170.00
$144.50
$144.50 - $144.50
$144.50
SKU CN55

Ask questions

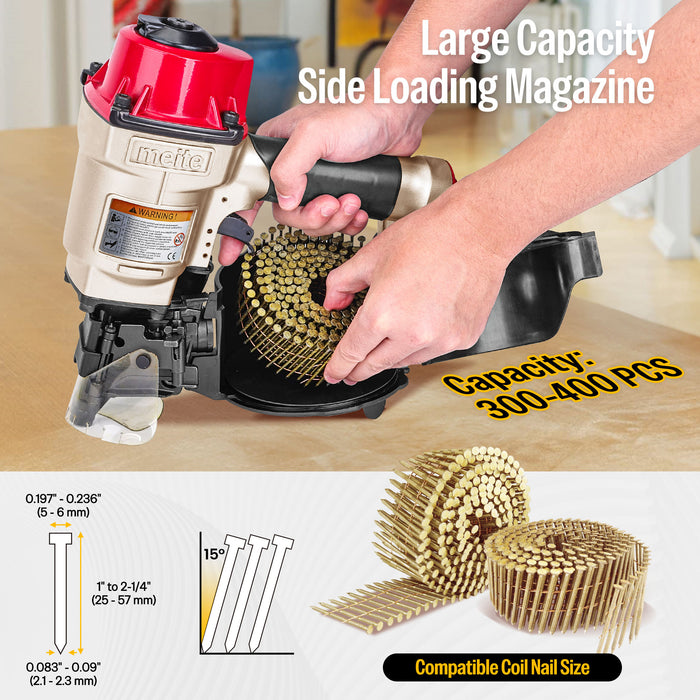

Industrial-grade siding coil nailer, powerful for heavy-duty applications, such as pallets, crates & wood cases, sheathing, siding, fencing, decking, etc. One of the best selling siding coil nailers in the pneumatic coil nailer market.

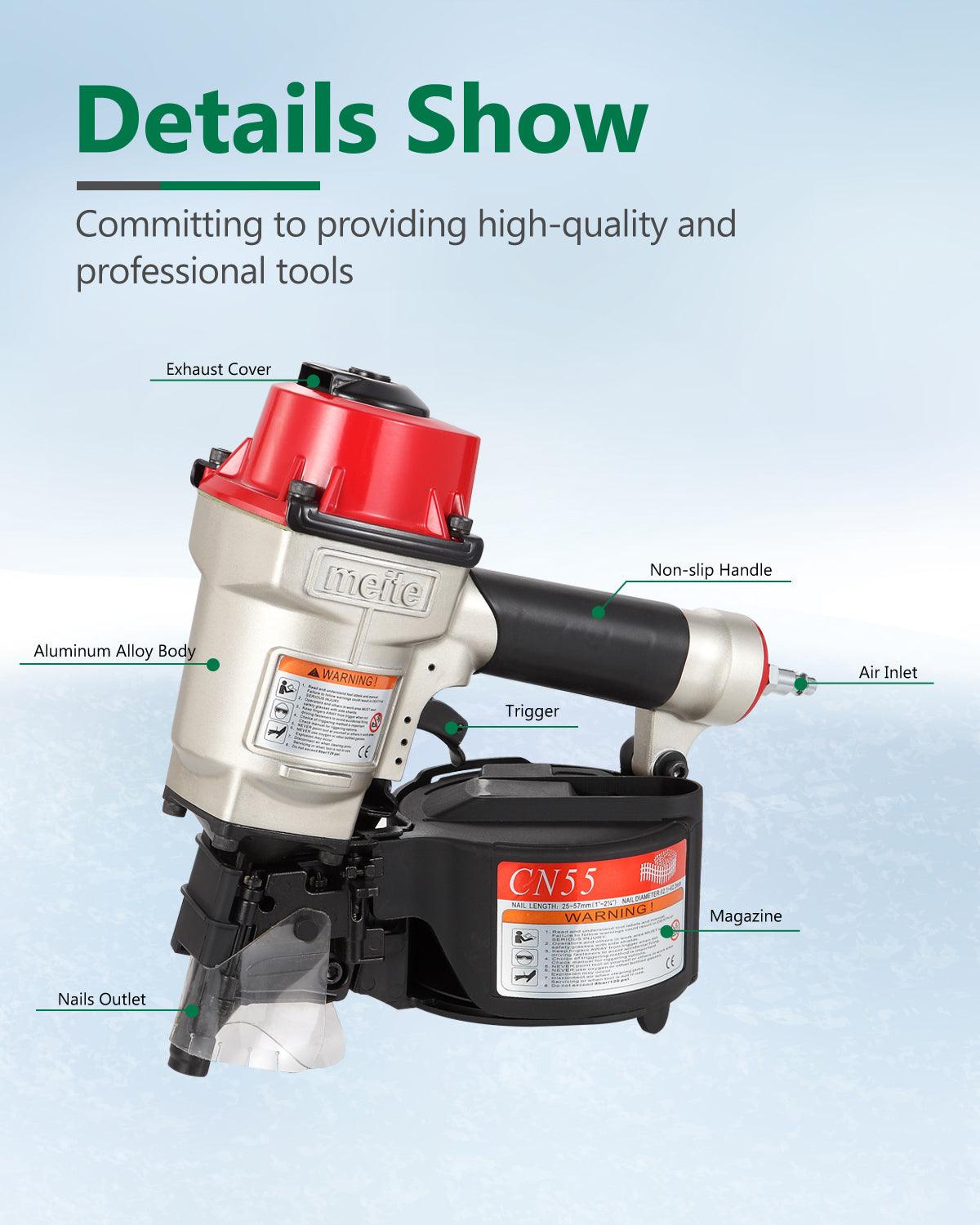

  • Extra heavy-duty: Die-cast aluminum construction
  • Durable driver: Makes use of the stronger and more durable driver and bumper which serve for a long time.
  • Drives 400 nails: Continuously by full-loading

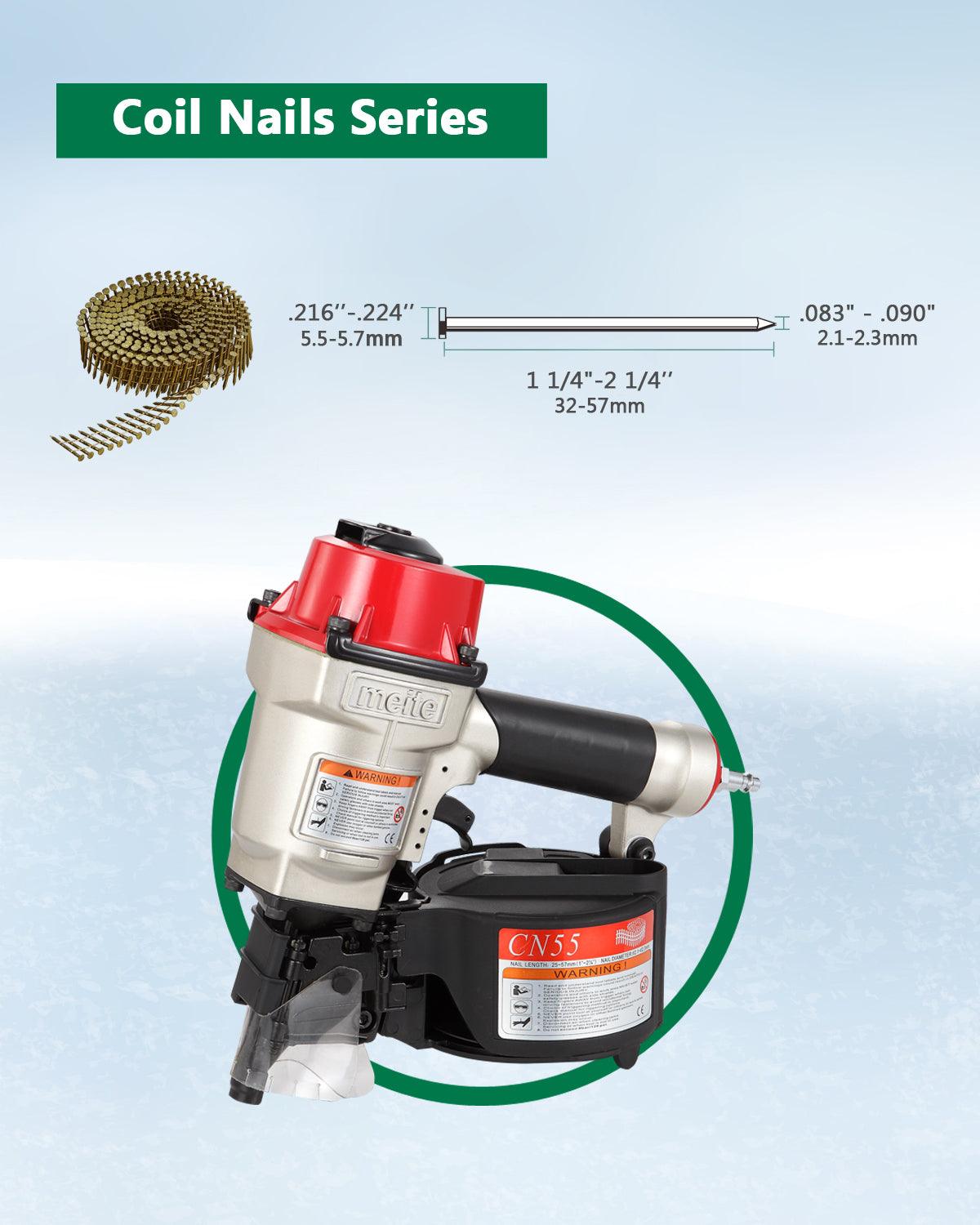

  • Compatible fastners: 15 Degree 1-1/4" to 2-1/4" (32-57 mm) length nails

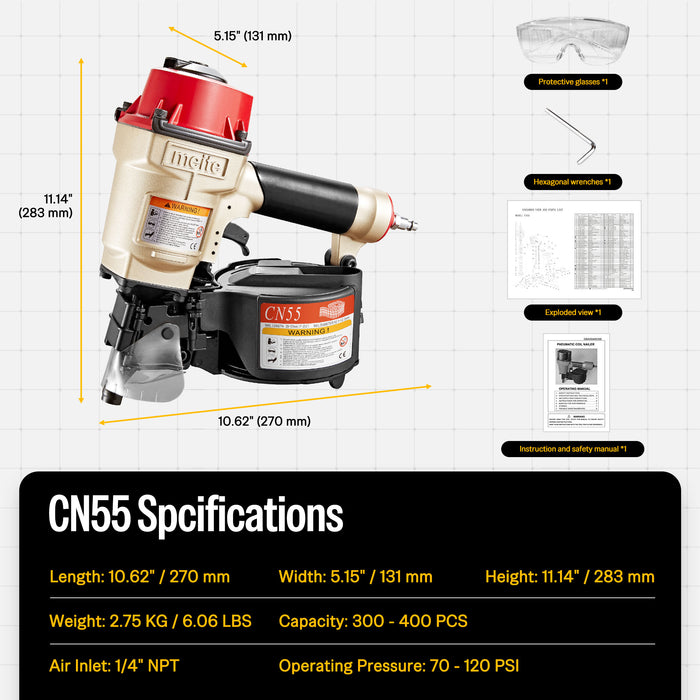

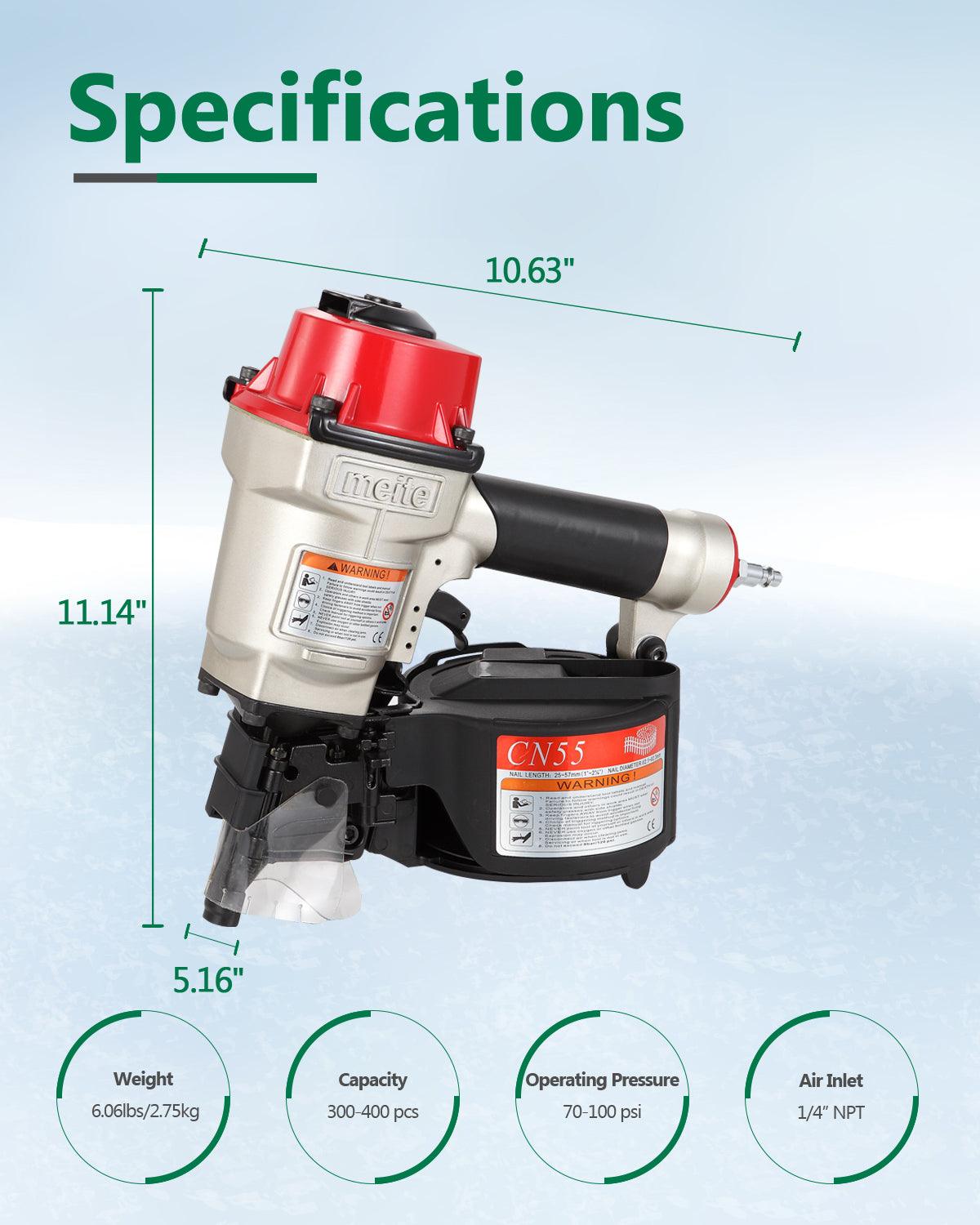

Technical Specifications:
  CN55 CN65 CN70B CN80B CN90
Weight 6.06 lbs (2.75 kg) 6.53 lbs (2.96 kg) 8.46 lbs (3.84 kg) 8.86 lbs (4.02kg) 9.11 lbs (4.13kg)
Length 10.63" (270 mm) 12.20" (310 mm) 13.23" (336 mm) 13.66" (347 mm) 15.15" (385 mm)
Width 5.16" (131 mm) 5.11" (130 mm) 5.63" (143 mm) 5.39" (137 mm) 5.39" (137 mm)
Height 11.14" (283 mm) 12.91" (328 mm) 12.52" (318 mm) 13.70" (348 mm) 14.37" (365 mm)
Capacity 300-400 300 225-300 225-300 225-300
Recommend Operating Pressure

85～115psi

(6-8bar)

85～115psi

(6-8bar)

85～115psi

(6-8bar)

85～115psi

(6-8bar)

85～115psi

(6-8bar)
Fastener Specifications
Nail Length

1-1/4" to 2-1/4"

(32 mm - 57 mm)

1-1/2"- 2-1/2"

(38-65 mm)

2-1/4"- 2-3/4"

(57-70 mm)

2"- 3-1/4"

(50-83 mm)

2-1/4"- 3-1/2"

(57-90 mm)
Head Diameter

0.197" - 0.224"

(5.0 mm - 5.7 mm)

0.090"-0.130"

(2.3-3.3 mm)

0.090"-0.114"

(2.3-2.9 mm)

0.098"-0.112"

(2.5-3.1 mm)

0.098"-0.130"

(2.5-3.3 mm)
Shank Diameter

0.083" - 0.090"

(2.1 mm - 2.3 mm)

0.224"-0.287"

(5.7-7.3 mm)

0.224"-0.276"

(5.5-5.7 mm)

0.236"-0.276"

(6.0-7.0 mm)

0.244"-0.283"

(6.2-7.2 mm)
Shank Type Smooth/Screw/Ring Smooth/Screw/Ring Smooth/Screw/Ring Smooth/Screw/Ring Smooth/Screw/Ring

Discover the unmatched precision and durability of our coil nailers for your heavy-duty nailing needs.
