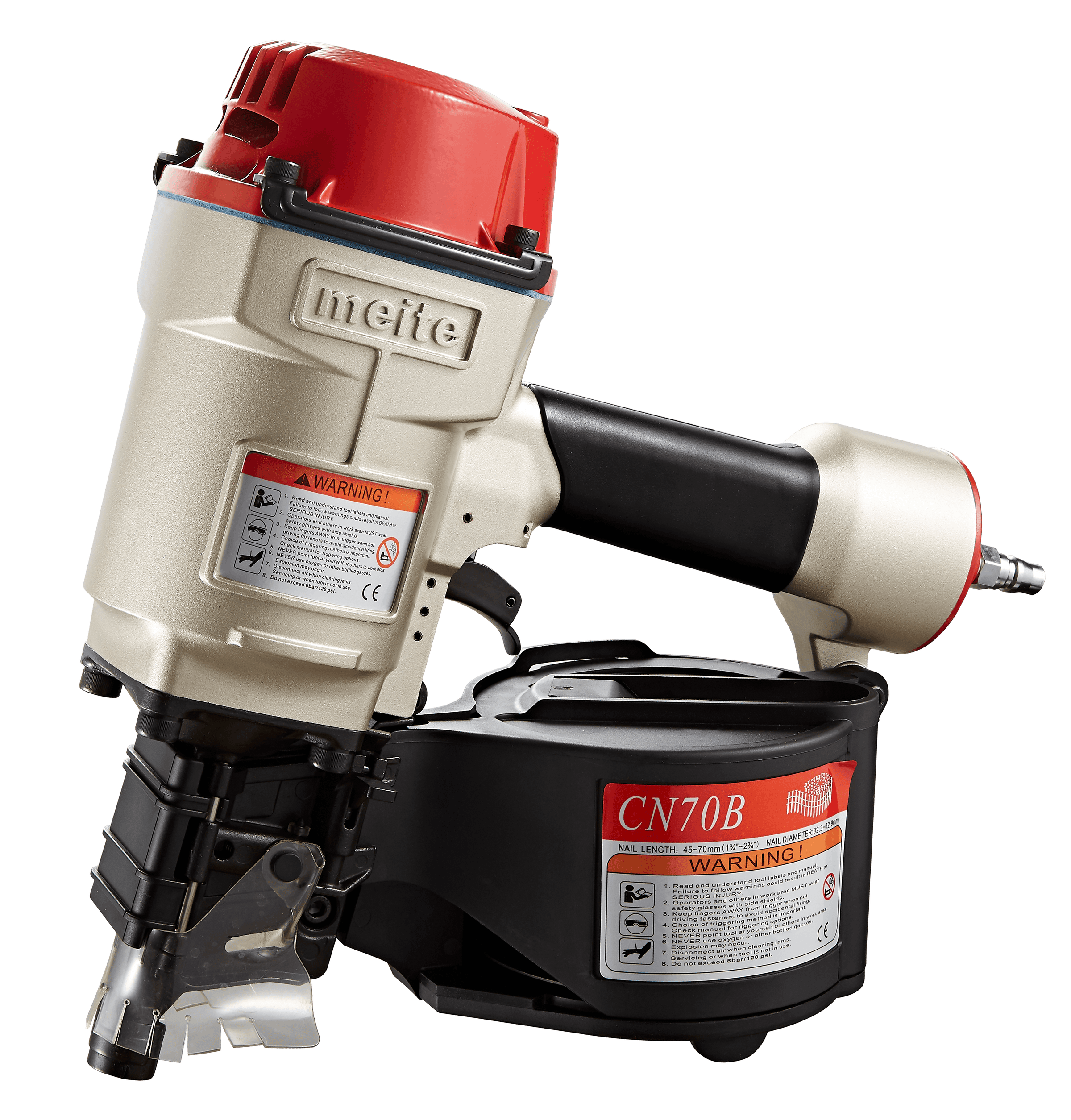

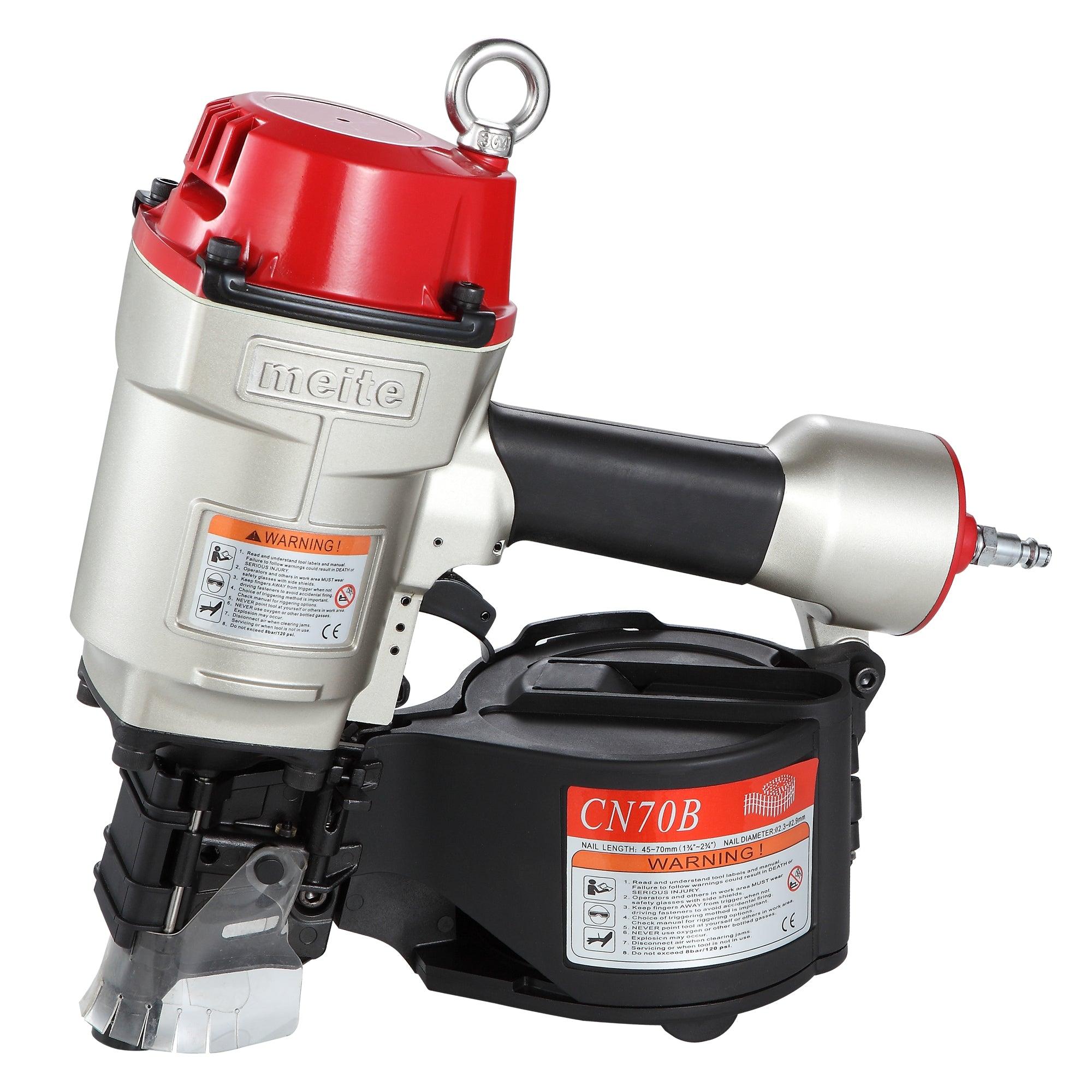

15 Degree 1-3/4" to 2-3/4" Industrial Coil Nailer--CN70B
-
Regular Price
-
$170.00
-
Sale Price
-
$170.00
-
Regular Price
-
$189.00
Sold Out
-
Unit Price
- per
- Regular Price
- $170.00
- Sale Price
- $170.00
- Regular Price
- $189.00
- Unit Price
- per
One of the best selling siding coil nailers in the pneumatic coil nailer market

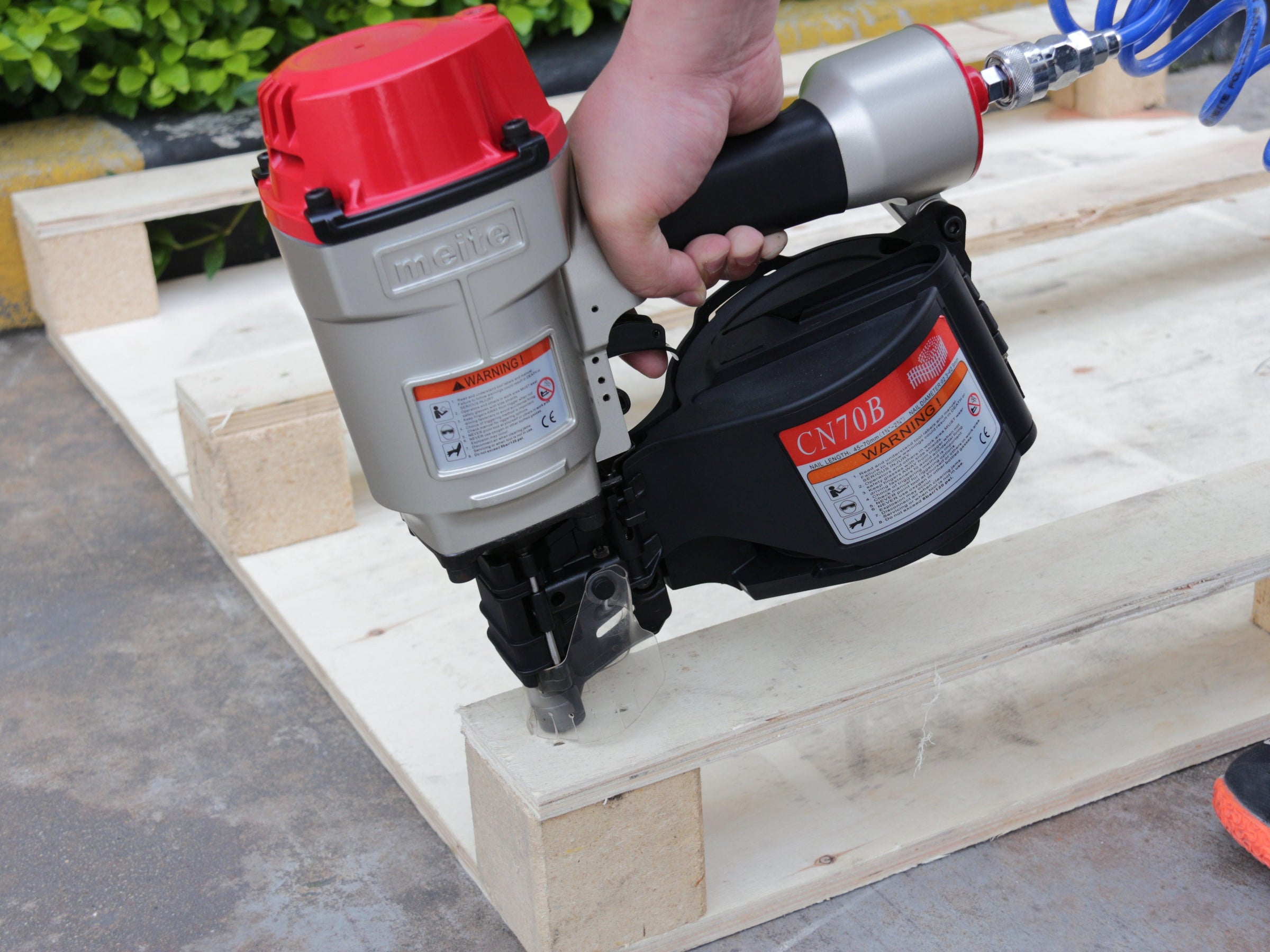

[Powerful Nailing] Industrial-grade siding coil nailer, powerful for heavy-duty applications, such as pallets, crates&wood cases, framing, siding, fencing, packaging, decking, etc.
[Durable Driver] Makes use of the stronger and more durable driver and bumper which serve for a long time.

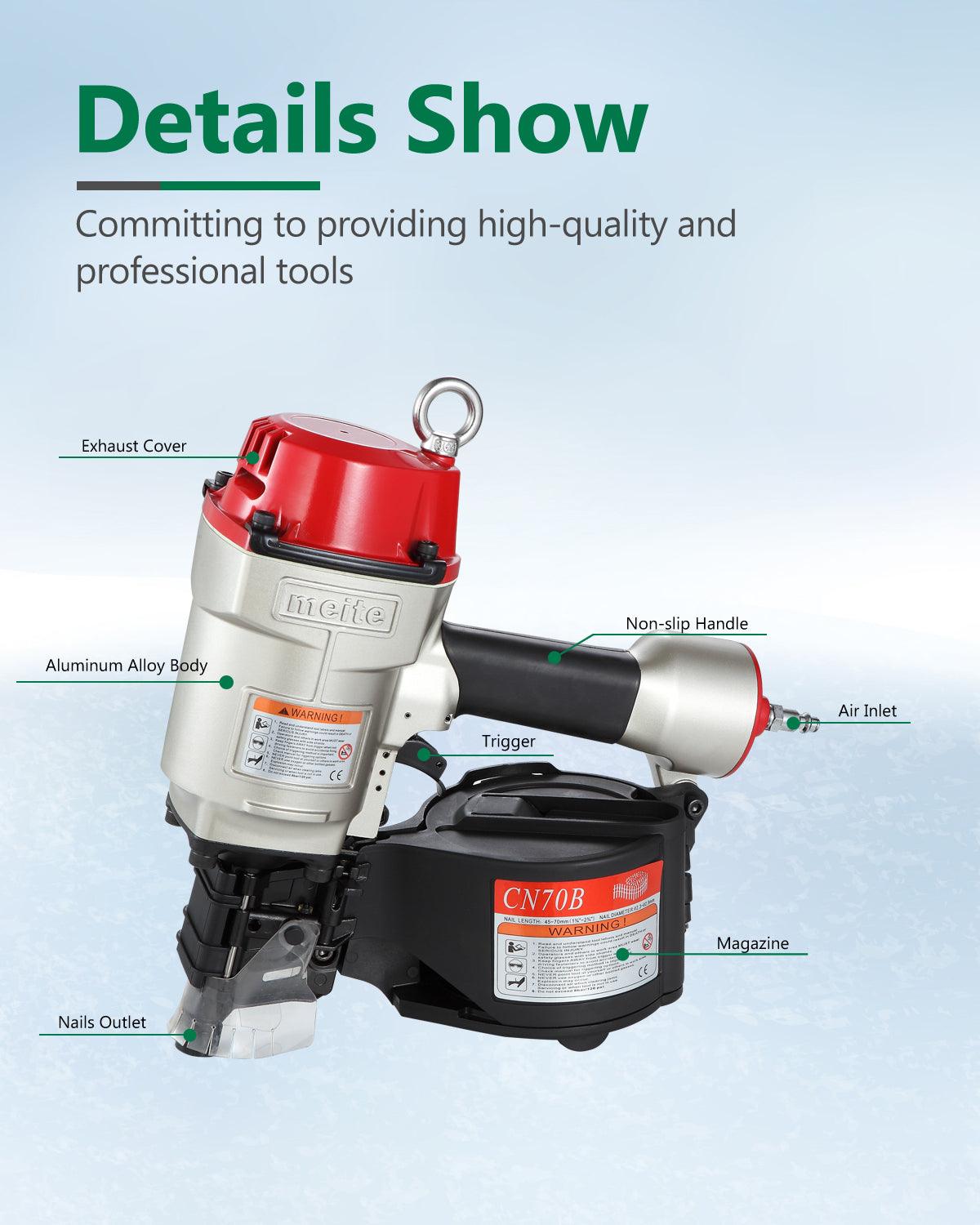

Extra heavy-duty; die-cast aluminum construction; multi-directional exhaust
Rugged magazine
Drives 225-300 pieces of nails continuously by full-loading

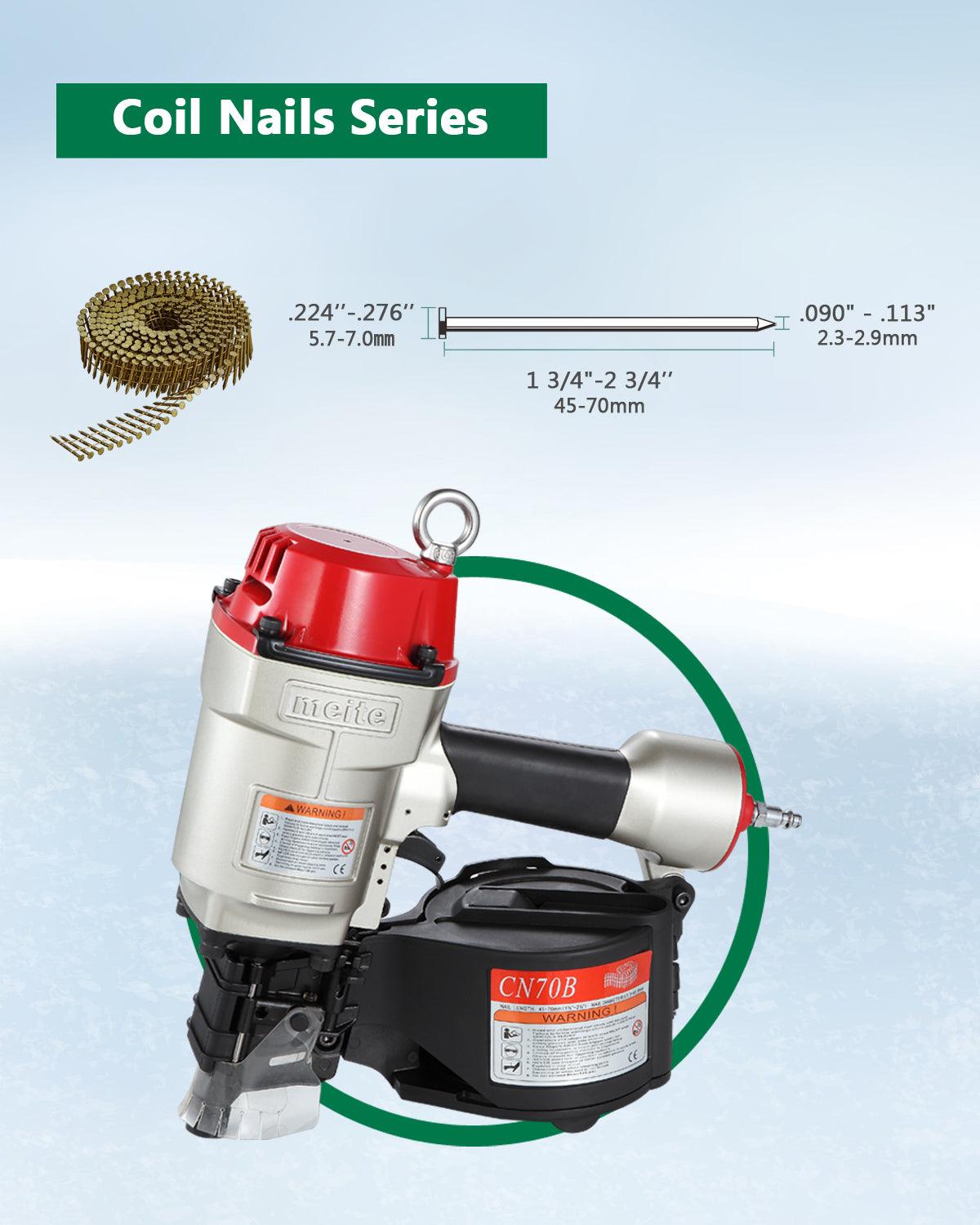

[Compatible Fasteners] 15 Degree 1-3/4" to 2-3/4" (45-70 mm) length nails
- SKU: CN70B
- In Stock: 22
- Weight: 7.94 lb
- Product Type: Coil Nailer
- Brand: Meite USA
In Depth

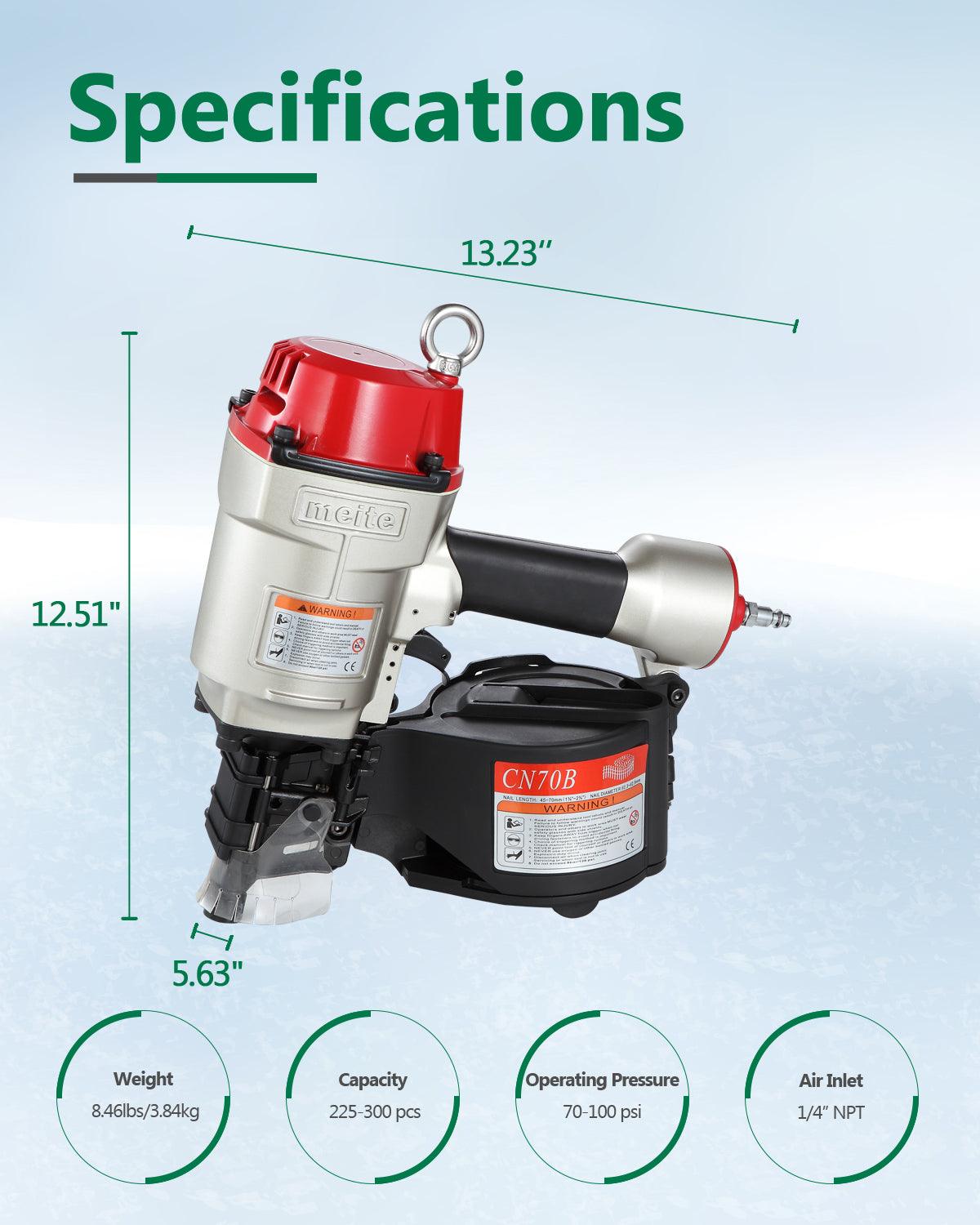

| CN55 | CN65 | CN70B | CN80B | CN90 | |
| Weight | 6.06 lbs (2.75 kg) | 6.53 lbs (2.96 kg) | 8.46 lbs (3.84 kg) | 8.86 lbs (4.02kg) | 9.11 lbs (4.13kg) |
| Length | 10.63" (270 mm) | 12.20" (310 mm) | 13.23" (336 mm) | 13.66" (347 mm) | 15.15" (385 mm) |
| Width | 5.16" (131 mm) | 5.11" (130 mm) | 5.63" (143 mm) | 5.39" (137 mm) | 5.39" (137 mm) |
| Height | 11.14" (283 mm) | 12.91" (328 mm | 12.52" (318 mm) | 13.70" (348 mm) | 14.37" (365 mm) |
| Capacity | 300-400 | 300 | 225-300 | 225-300 | 225-300 |
| Recommend Operating Pressure |
85～115psi (6-8bar) |
85～115psi (6-8bar) |
85～115psi (6-8bar) |
85～115psi (6-8bar) |
85～115psi (6-8bar) |
| Fastener Specifications |
|
|
|
||
| Nail Length |
1-1/4" to 2-1/4" (32 mm - 57 mm) |
1-1/2"- 2-1/2" (38-65 mm) |
2-1/4"- 2-3/4" (57-70 mm) |
1-3/4"- 3-1/4" (45-80 mm) |
2-1/4"- 3-1/2" (57-90 mm) |
| Head Diameter |
0.197" - 0.224" (5.0 mm - 5.7 mm) |
0.090"-0.130" (2.3-3.3 mm) |
0.090"-0.114" (2.3-2.9 mm |
0.098"-0.112" (2.5-3.1 mm) |
0.098"-0.130" (2.5-3.3 mm) |
| Shank Diameter |
0.083" - 0.090" (2.1 mm - 2.3 mm) |
0.224"-0.287" (5.7-7.3 mm) |
0.224"-0.276" (5.5-5.7 mm) |
0.236"-0.276" (6.0-7.0 mm) |
0.244"-0.283" (6.2-7.2 mm) |
| Shank Type | Smooth/Screw/Ring | Smooth/Screw/Ring | Smooth/Screw/Ring | Smooth/Screw/Ring | Smooth/Screw/Ring |
