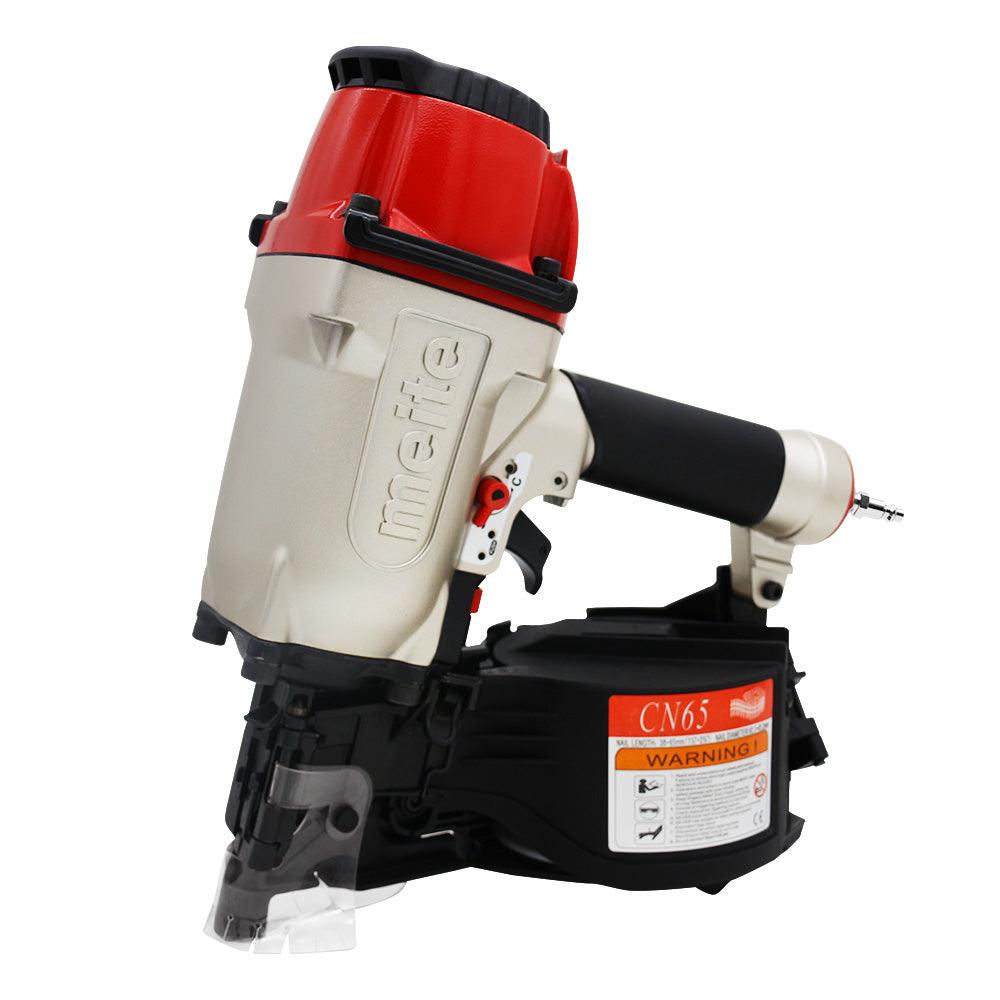

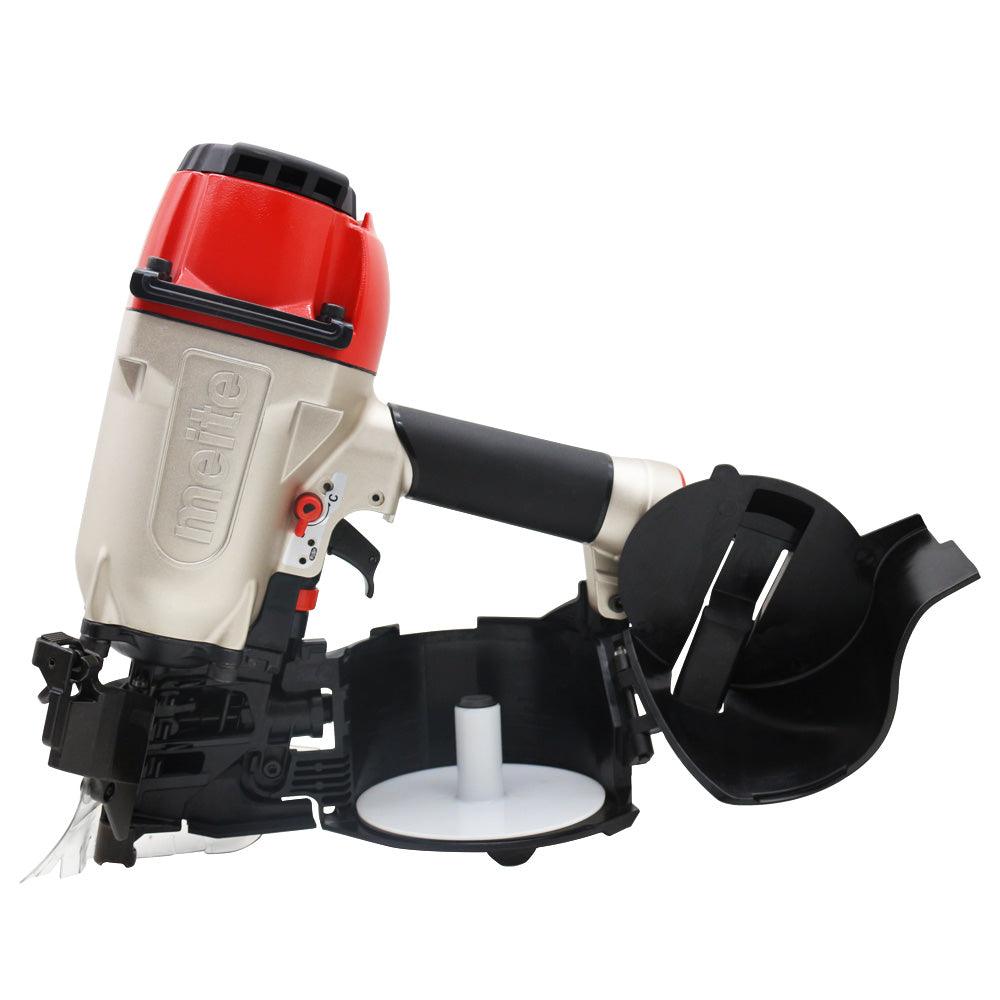

15 Degree 1-1/2" to 2-1/2" Industrial Coil Nailer--CN65

Regular Price
$185.00
Sale Price
$185.00
Regular Price
$260.00
Sold Out
Unit Price
per

{"one"=>"Only {{ count }} left!", "other"=>"Only {{ count }} left!"}
- +

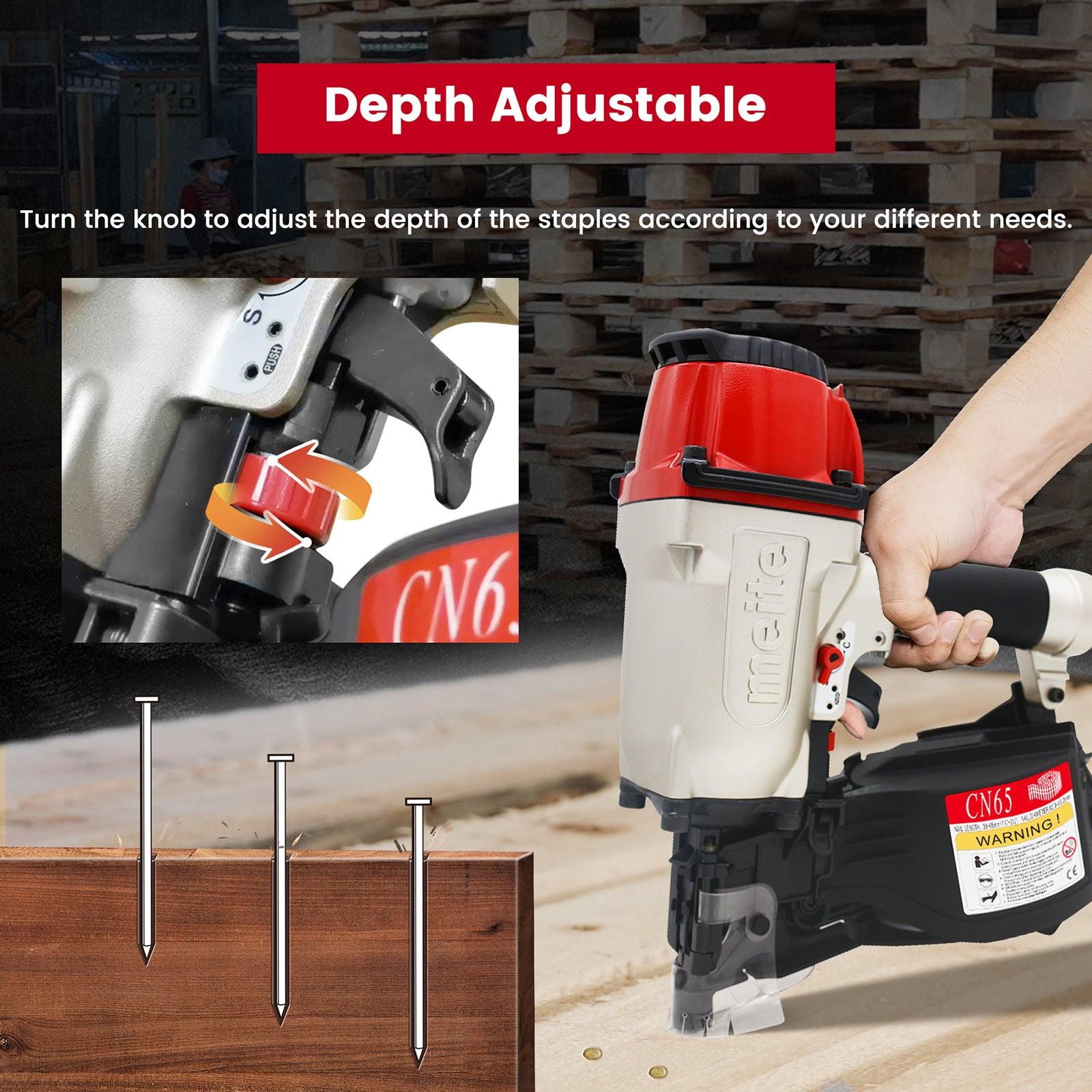

[Adjustable Depth Control] Available to adjust the depth of the drive by rotating the red control knob

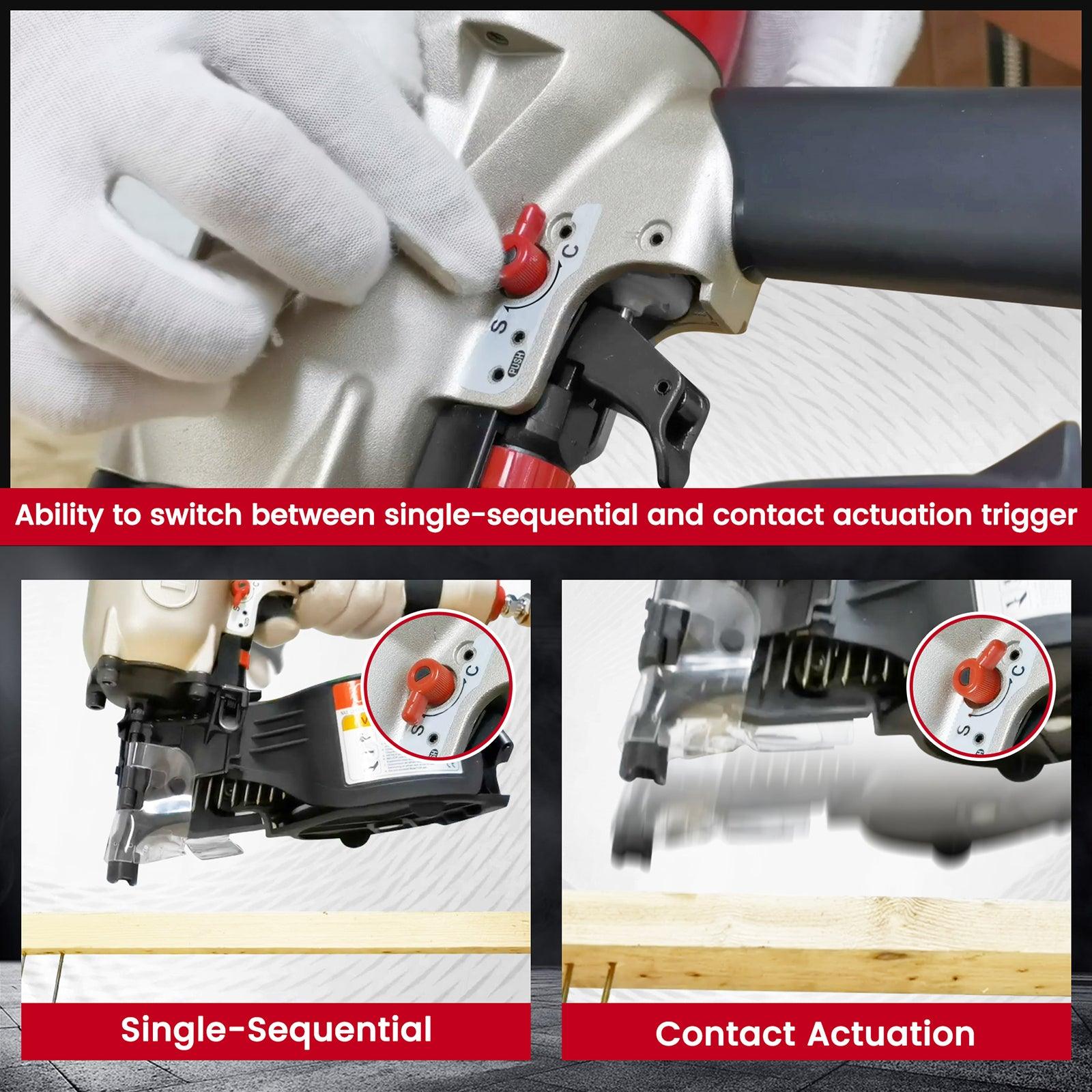

[Switchable Fire Mechanism] Equip with a switchable fire mechanism--"S" is for the single-sequential trigger; "C" is for the contact actuation trigger

[Powerful Nailing] Industrial-grade siding coil nailer, powerful for heavy-duty applications, such as pallets, crating, wood cases, fencing, etc.

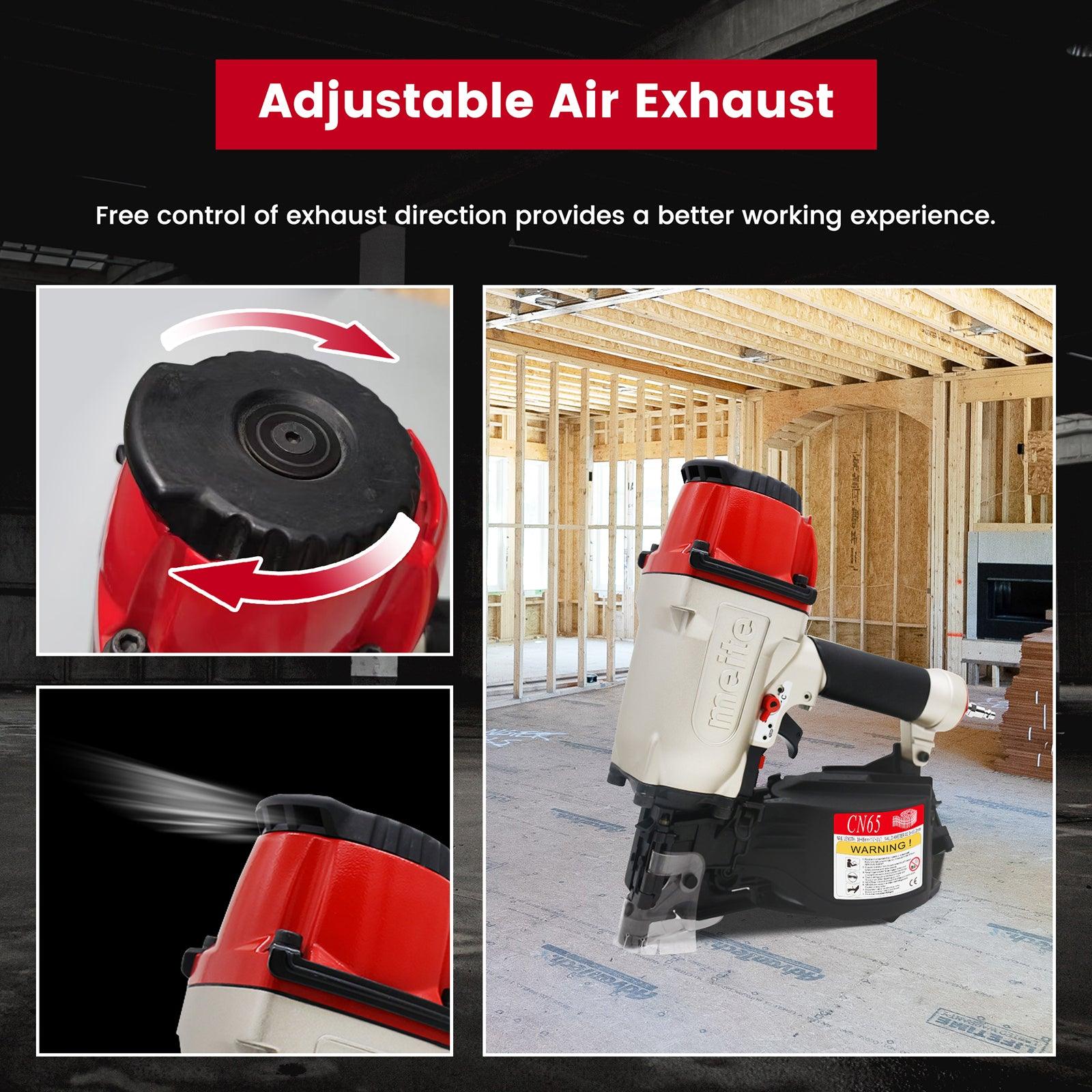

[Switchable fire mechanism] Multi-directional exhaust, 360-degree exhaust deflector.

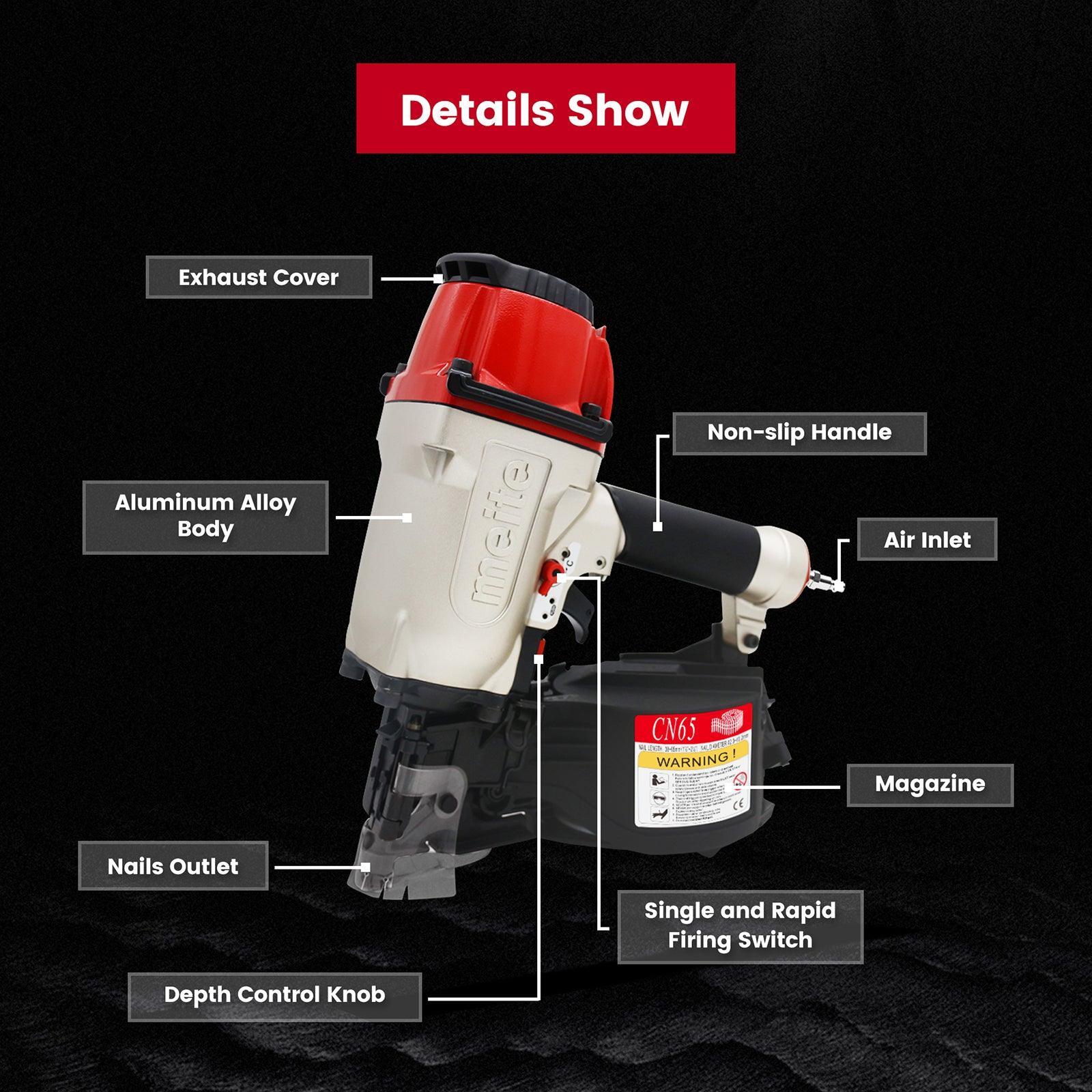

Aluminum durable and lightweight design with an extended nose, cap and rugged magazine

Drives 400 nails continuously by full-loading

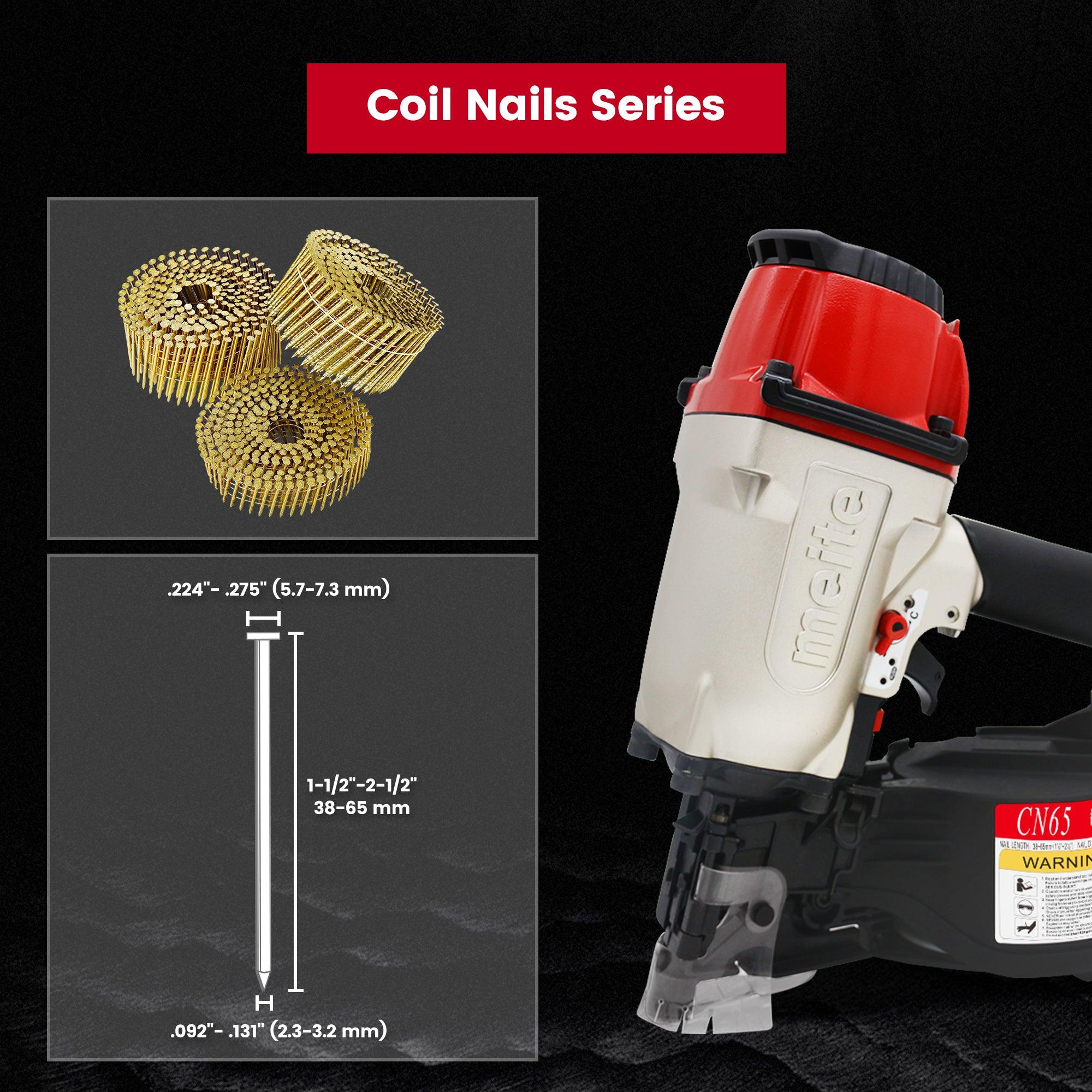

    [Compatible Fasteners] 15 degrees 1-1/2" to 2-1/2" length coil nails

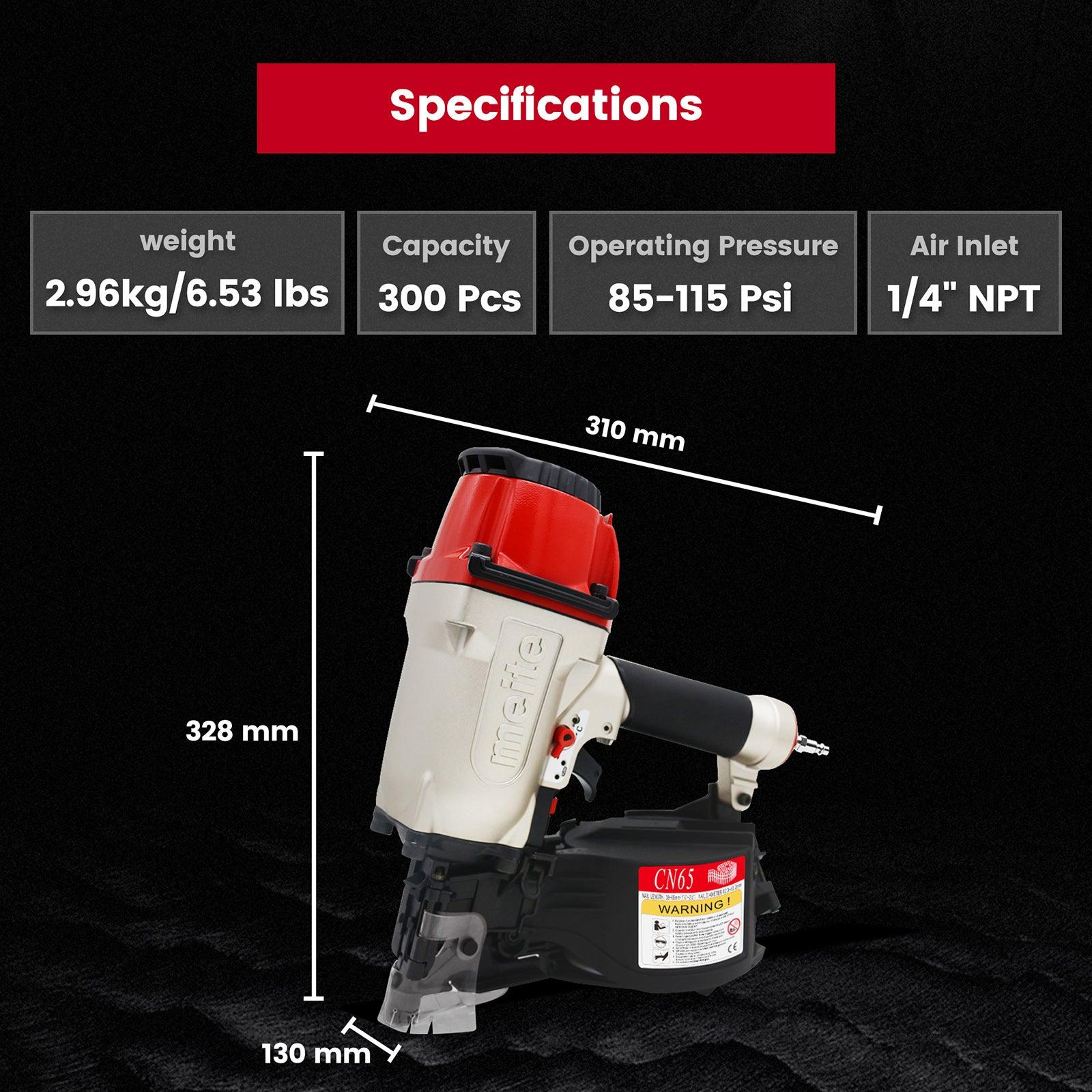

In Depth

  CN55 CN65 CN70B CN80B CN90
Weight 6.06 lbs (2.75 kg) 6.53 lbs (2.96 kg) 8.46 lbs (3.84 kg) 8.86 lbs (4.02kg) 9.11 lbs (4.13kg)
Length 10.63" (270 mm) 12.20" (310 mm) 13.23" (336 mm) 13.66" (347 mm) 15.15" (385 mm)
Width 5.16" (131 mm) 5.11" (130 mm) 5.63" (143 mm) 5.39" (137 mm) 5.39" (137 mm)
Height 11.14" (283 mm) 12.91" (328 mm 12.52" (318 mm) 13.70" (348 mm) 14.37" (365 mm)
Capacity 300-400 300 225-300 225-300 225-300
Recommend Operating Pressure

85~115psi

(6-8bar)

85~115psi

(6-8bar)

85~115psi

(6-8bar)

85~115psi

(6-8bar)

85~115psi

(6-8bar)

Fastener Specifications







Nail Length

1-1/4" to 2-1/4"

(32 mm - 57 mm)

1-1/2"- 2-1/2"

(38-65 mm)

2-1/4"- 2-3/4"

(57-70 mm)

1-3/4"- 3-1/4"

(45-80 mm)

2-1/4"- 3-1/2"

(57-90 mm)

Head Diameter

0.197" - 0.224"

(5.0 mm - 5.7 mm)

0.090"-0.130"

(2.3-3.3 mm)

0.090"-0.114"

(2.3-2.9 mm

0.098"-0.112"

(2.5-3.1 mm)

0.098"-0.130"

(2.5-3.3 mm)

Shank Diameter

0.083" - 0.090"

(2.1 mm - 2.3 mm)

0.224"-0.287"

(5.7-7.3 mm)

0.224"-0.276"

(5.5-5.7 mm)

0.236"-0.276"

(6.0-7.0 mm)

0.244"-0.283"

(6.2-7.2 mm)

Shank Type Smooth/Screw/Ring Smooth/Screw/Ring Smooth/Screw/Ring Smooth/Screw/Ring Smooth/Screw/Ring
