Why Is My Nail Gun Not Nailing Properly?

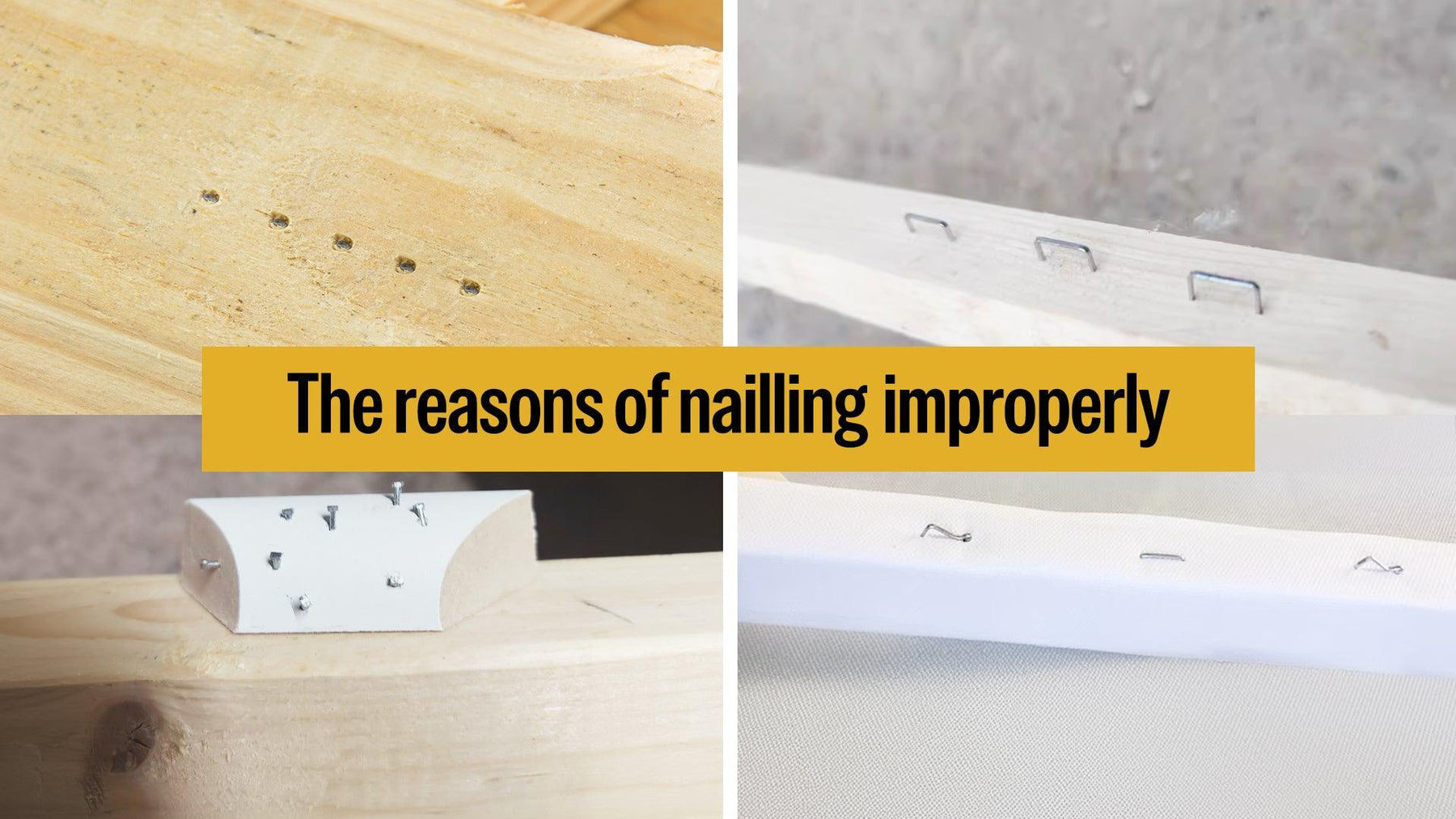

Pneumatic nail guns use compressed air to drive nails and other fasteners into different materials. When used properly, they can save you time and money, but sometimes they require maintenance for optimal performance. A common problem users have found is nails that don’t sink fully, also known as nail “pop-out,” which can lead to unstable framing, noncompliance with building codes, and the need for additional hammers to complete the job. Or nails that drive too deep into the wood will also prevent the job from going forward. This time, we’ll look at a few reasons why a nail gun may not sink a nail fully or too deep.

Reason 1: Incorrect Nail Size

One of the most common reasons a nail gun won't drive a nail properly is using an incorrect-sized nail. Each nail gun has different specifications for the size of nails they can drive. Using nails or staples of a non-recommended diameter or length can cause the tool to malfunction. Always check the user manual for your specific nail gun to find out what nail specifications and lengths it requires.

The length of the nail from top to bottom and the diameter of the nail shank can vary depending on the type and manufacturer of the nail gun. Using fasteners of the wrong diameter or length can cause the nail to not be driven all the way, or not be driven for a while - because the nail gun can jam.

Reason 2: Incorrect Depth Setting

Some nail guns have settings or adjustments for nail depth. This is one of their features. Always check the driving depth setting of the relevant nail gun before use. Then run the nail gun with the nails and air pressure recommended by the user manual to see if the problem has resolved itself.

Reason 3: Low/High Air Pressure

Another common reason why a nail gun may not properly drive nails is incorrect air pressure. Pneumatic nail guns rely on compressed air to drive nails. If the air pressure is too low, the nails will not sink properly. If the air pressure is too high, the nails will not only be driven deep into the material, but may also put the operator in danger. Always check the range of air pressure for the nail guns to make sure it is at the correct level.

Reason 4: Material Hardness

Each nail gun is designed to work with different materials. This requires choosing the right nail gun for the application. For example, if the material you are using is too hard or too dense, it will cause nails to not drive properly - or at all. If the material you are using is too soft or not dense enough, nails can easily drive deep into the material. It's important to be aware of the material being used, making adjustments accordingly to ensure the nailer performs to its fullest potential.

Reason 5: Damaged Bumpers and O-rings

One of the main reasons for a nail gun driving nails too deep or not with enough force is damaged bumpers or O-rings. These components play a crucial role in absorbing the impact and regulating the force of the nail gun. When they are worn out or damaged, the nail gun may not function properly, resulting in nails being driven too deep or not deep enough. Regular inspection and replacement of bumpers and O-rings are essential to maintain the optimal performance of your nail gun.

Reason 6: Insufficient Lubrication

Another common issue affecting the performance of a nail gun is insufficient lubrication. Pneumatic nail guns rely on adequate lubrication to ensure smooth operation and prevent excessive wear on moving parts. Without proper lubrication, friction increases, which can cause the nail gun to drive nails weakly. It's important to regularly oil your nail gun according to the manufacturer's instructions to keep it running smoothly and efficiently.

Reason 7: Damaged Driver Blade or Muzzle

A damaged driver blade or muzzle can also lead to problems with nail depth and driving force. The driver blade is responsible for pushing the nails into the material, and any damage to it can affect the force applied. Similarly, a damaged muzzle can disrupt the alignment and depth at which the nails are driven. If you notice inconsistent nail depth or force, it's crucial to inspect the driver blade and muzzle for any signs of wear or damage and replace them if necessary to ensure the proper functioning of your nail gun.

A nailer that doesn't sink nails properly or fails to perform as expected can be a frustrating issue, but with a bit of knowledge and basic troubleshooting, it doesn’t have to disrupt your progress on the job. By checking the nail size, air pressure, bumpers, O-rings, driver blade, muzzle, and depth settings, and ensuring proper lubrication, you can quickly identify and resolve the problem almost every time. Regular maintenance and attention to these details will keep your nail gun working at its best. With the right knowledge and care, your nail gun can continue to operate efficiently and effectively, enhancing your productivity and profitability.
